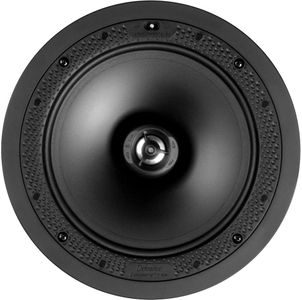

Clarity and performance are foremost in the nearly invisible Definitive Technology Disappearing™ Series. The low-profile design puts the DI 8R in-ceiling speaker above the rest, delivering audio with clearly superior sonic presentation and even dispersion. The specially-engineered design casts sound over a wider area, giving listeners a more balanced and natural audio experience.Read More
White Finish
Powerful sound comes to life with an 8" BDSS™ bass/mid and 1" pivoting pure aluminum dome tweeter
Flangeless design, micro-perf grille and flush mounting allow a discreet 9.75" total visible diameter
Rigid PolyStone™ baskets eliminate unwanted vibrations to prevent ringing and minimize distortion
Axially Aligned design for broader sound dispersion and more natural balance
Proprietary BDSS™ technology delivers the wide dynamic range and deep bass output of much larger drivers in a small-sized, high-efficiency mid/woofer.
The pivoting pure aluminum dome tweeter features a uniquely constructed housing, eliminating diffraction distortions typical with traditional speakers for spectacular audio performance.
BDSS™ technology, aim-ready tweeters and a specially-contoured AeroRing™ around the driver distributes natural, well-balanced sound everywhere in the room.
A sophisticated adjustable crossover network with custom, high-precision components produces superior sonic purity for crisp, clean sound.
General Specs | |
Product Weight (lbs.) | 4.8 |
MPN | UEWA |
Color Finish Name | White |
RMS Power Handling (Watts) | 225 |
Color | White |
Impedance | 8 ohms |
Number of Speakers | 1 |
Speaker Type | In-Ceiling Speakers |
Depth (in.) | 3.88 |
Height (in.) | 8.75 |
Specifications | |
Sensitivity | 90 dB |
Sold As | Each |
Color | White |
Availability | US |
Depth | 3.88" (9.86 cm) |
Weight | 4.8 lbs (2.18 kg) |
Grille Dimensions | 9.75" (24.77 cm) diameter |
Shipping Carton | 6.25" (15.88 cm) h x 11.44" (29.06 cm) w x 11.44" (29.06 cm) d - 7 lbs (3.18 kg) |
Driver Complement | |
Pivoting Dome Tweeter - Tweeter | (1) 1" (2.54 cm) d (Round) Pivoting Dome Tweeter - Tweeter |
BDSS Bass/Mid - Mid/Woofer | (1) 8" (20.32 cm) d (Round) BDSS Bass/Mid - Mid/Woofer |
In-Wall Mount | |
Shape | Round |
Dimensions | 8.75" (22.23 cm) diameter |
In-Ceiling Mount | |
Shape | Round |
Dimensions | 8.75" (22.23 cm) diameter |
Inputs | |
Speaker Inputs | (1) Pair of Heavy Duty, Spring Loaded - na |
Audio Quality | |
Total Frequency Response | 26 Hz to 30 Hz |
Nominal Impedance | 8 ohms |
Max Sensitivity (1 watt @ 1 meter) | 90 dB |
Crossover | |
Peak Power Handling | 225 watts |
A/V Receiver Crossover Settings | Small (40 Hz) |
Warranty | |
Cabinet Warranty | 5 Years |
Drivers Warranty | 5 Years |
Included Accessories | |
Wall Mounting Template | 1 |
Paintable Magnetic Grille | 1 |
