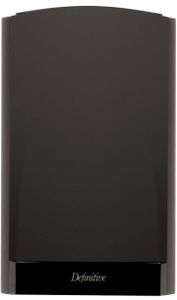

Definitive Technology® High Performance Shelf/Stand Monitor Loudspeaker

Highlights

• Second generation patented 6-1/2" BDSS mid/bass driver with Linear Response Waveguide technology for flat, accurate response with micro-detail retrieval and three-dimensional imaging
• Cast aluminum driver baskets
• Second generation pure aluminum dome tweeter for smooth, extended highs
• Top-mounted racetrack bass radiator for outstanding bass response
• Non-resonant braced enclosure ensures pure, uncolored performance
• High-gloss anti-diffraction baffle and shaped enclosures reduce diffraction for open and spacious imaging
• Crossover network features oversize inductors and premium Mylar capacitors for audiophile-grade sound quality
• Integrated Zobel network makes the SM55 easy for amplifiers to drive
• Bi-amp/bi-wire all-metal 5-way bin

The Most Advanced Technologies for the Most Advanced Performance

• If you love great sound you must experience Definitive's StudioMonitor 55. Its combination of racetrack bass radiator technology, and our latest generation patented Balanced Double Surround System (BDSS) bass/midrange drivers, all housed in a rock-solid attractive enclosure, delivers unsurpassed sonic performance.
• Each SM 55 features a D'Appolito array consisting of two cast-basket 6-1/2" (17cm) second generation BDSS midrange drivers surrounding a 1" (25mm) pure aluminum dome tweeter. The drivers feature Definitive's patented Balanced Double Surround System (BDSS) technology that supports the speaker cone at both the inner and outer edges allowing longer, more linear excursion for greater clarity and finely textured inner detail. A new patent pending Linear Response Waveguide™ smoothes off-axis frequency response and disperses sound over a wider area for crystal clear intelligibility for every listener in the room. The tweeter is a pure aluminum dome, which has been heat-treated to relax the crystal structure and then coated with a ceramic to produce extended highs that reveal nuance and shimmer without a trace of edginess.
• The BDSS long-throw bass/midrange driver is pressure coupled to a top mounted racetrack bass radiator to extend and amplify bass frequencies. The total bass radiating area of a SM55 is substantially greater than that of a single 10-inch woofer but with far greater control, definition and speed than a single sluggish large woofer. The StudioMonitor's bass performance is nothing short of astonishing in its depth, detail and musicality.

Slim Elegant Styling with Rambo-Like Brawn

• All the driver and crossover technology in the world would be wasted if housed in a resonance-prone box. We devoted as much Design and Engineering attention to the styling and construction of the StudioMonitor 55's enclosure as any other part of its design
• The specially shaped high gloss baffle around the drivers and the tapered enclosure sides enhance sound quality by minimizing diffraction distortion. The decorative high gloss grille and cabinet accents add elegance to the matte black tower the way satin piping adds dash to a tuxedo
• But the enclosure's most important job is to be totally inert and resonance free so as not to color the sound. And that's just we did in engineering the SM enclosures. Internal MDF cross braces further stiffen the system. Tap on the side panel of a StudioMonitor 65 enclosure to hear the solid "thud" of a solid, well-damped cabinet instead of the hollow ring of a poorly constructed speaker

Phase-Coherent Crossover Networks

• The crossover network is the real heart of a loudspeaker as it is responsible for perfectly blending together the sound of the various drivers into a musically seamless whole. The sophisticated design used in the SM55 features premium audiophile-grade components such as oversized inductors, Mylar capacitors for linear phase and frequency response. An integrated Zobel network flattens the impedance of the system so that even budget amplifiers will be able to drive the SM65 (although a premium amplifier will bring out all the performance this remarkable speaker has to offer). This preserves the phase coherence, transient response and dynamic integrity of the signal for absolutely lifelike music and home theater reproduction in your home

The Proof is in the Listening

• This extraordinary speaker sets a new reference standard for high-accuracy loudspeakers in its class and achieves equally superb performance with both music and movies. The StudioMonitor 55 reproduces a silky smooth, incredibly detailed sonic image at lifelike volume levels with a sense of ease which is truly remarkable. Movies and music are reproduced with unequaled purity, transparency and lifelike realism

Warranty Information

• Electronic components- 3 Years Parts and Labor
• Drivers and Cabinet- 5 Years Parts and Labor

Specifications
