    Definitive Technology® IW Sub Reference™ Ultra High-Performance 13" White In-Wall Subwoofer

    Definitive Technology

    Model #:

    IW Sub Reference

    At a Glance

    The IWSub Reference is a completely self-enclosed in-wall subwoofer for use in whole house distributed music or stealth home theater installations. It's a deep bass powerhouse that will disappear in your room. It has a non-resonant sealed medite (a dense wood product) enclosure and a paintable bezel and grille.Read More

    Available in Store Only
    $1,499.00

    Get to know this product.

    Product Overview

    Product Overview

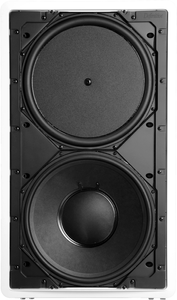

    IW Sub Reference Fully-Enclosed In-Wall Subwoofer

    Inside the completely self-enclosed in-wall sub is the technical brainpower derived from Definitive's award winning SuperCube free-standing subwoofers. It includes a special shallow-depth, long excursion active 13" driver pressure-coupled to a 13" Ultra Low Bass radiator for a total bass radiating surface area of over 265 square inches—more than an 18-inch woofer but with greater speed and control. Combined, these features result in tight musical excellence.

    Enjoy deep high impact bass without using any floor-space

    Fits in standard new or existing wall construction - fully enclosed design ensures perfect results in any wall

    One 13 inch active subwoofer driver pressure coupled to one 13 inch Ultra Low Bass radiator

    Use with Definitive SubAmp 600 only (sold and packaged separately)

    Available Finishes: White

    Useful Documents
    Manual
    Specifications

    General Specs

    ColorWhite
    Width (in.)15.50
    Height (in.)26.19
    Woofer Size13
    MPNUCXA
    Speaker TypePowered Subwoofers
    Color Finish NameWhite
    Speaker Size13
    Subwoofer Size13+

    Specifications

    Sold AsEach
    ColorWhite
    OrientationVertical
    Grille Dimensions26.19" (66.52 cm) h x 15.5" (39.37 cm) w
    Shipping Cartons30" (76.2 cm) h x 19.5" (49.53 cm) w x 10.5" (26.67 cm) d
    Shipping Weight45 lbs (20.41 kg)

    Driver Complement

    Subwoofer1) 13" (33.02 cm) d (Round)
    Bass Radiator(1) 13" (33.02 cm) d (Round)

    In-Wall Mount

    Available OrientationsVertical
    ShapeRectangle
    Dimensions25.13" (63.83 cm) h x 14.38" (36.53 cm) w

    Audio Quality

    Total Frequency Response14 Hz to 200 Hz
    Nominal Impedance4 ohms

    Inputs

    EthernetYes
    Speaker Inputs(1) Pair of Heavy Duty, Spring Loaded - na

    Warranty

    Cabinet Warranty5 Years
    Drivers Warranty5 Years
    Original Purchaser OnlyYes

    Accessories

    Required Accessories(1) SubAmp 600

    Included Accessories

    Wall Mounting Template1
    Paint Mask1
    Paintable Grille1
    Self Adhering Foam Gasket1

    WarningProposition 65 Warning for California Residents
