Product Dimensions 23.25"h x 6"w x 1.5"d

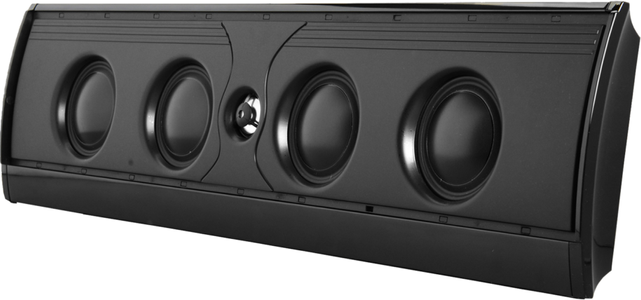

Mythos XTR-40 on-wall or on-shelf-mounting ultra-thin loudspeaker. 1 - 1” XTDD aluminum dome tweeters, 2 - 3.5” bass/mid drivers, 2 - 3.5” bass radiators.Read More
Hand-polished aircraft-grade aluminum is used almost exclusively in XTR speakers because few materials are rigid and resonance-free enough to perform well in compact sizes. With a patented XTDD anodized aluminum dome driver and pure aluminum dome tweeter—the same found in larger XTR speakers—the XTR 40 offers an incredibly broad sound experiences with a sleek, modern profile design to match.
Anodized aluminum XTDD drivers for ultra-high performance in a small space
Aircraft-grade aluminum enclosure means total rigidity that’s resonance-free
Compact 1.5" depth puts high performance sound quality anywhere it’s needed
Uncompromising sound quality equivalent to speakers twice its size
The extraordinary patented XTDD technology dome drivers are what give the XTR-40 its ultra-high performance, dynamic punch, wide frequency range and broad dispersion.
As TVs get thinner and their speakers get smaller, the XTR-40 brings theater quality sound back to your flat screen experience.
Robust sound and wide ranging clarity from such a small speaker is the result of our forward-thinking approach to sound—the kind we engineer into every one of our products
When you create a small speaker with the same drivers, radiators and tweeters you use in larger versions, even small size can deliver huge, natural, lifelike audio.
General Specs | |
Product Weight (lbs.) | 5.1 |
Color | Black |
Impedance | 8 ohms |
Number of Speakers | 1 |
Speaker Type | On-Wall Speakers |
Depth (in.) | 1.5 |
Height (in.) | 23.25 |
Width (in.) | 6 |
General | |
Qty Included | 1 |
Availability | US |
Driver Complement | |
Tweeter - Tweeter | (1) 1" (2.54 cm) d (Round) Tweeter |
Mid/Woofer - Tweeter | (2) 3.5" (8.89 cm) d (Round) Mid/Woofer |
Tweeter/Mid Array - Tweeter | (1) 0" (0 cm) h x 0" (0 cm) w (Oval) Tweeter/Mid Array |
Bass Radiator - Tweeter | (2) 3.5" (8.89 cm) d (Round) Bass Radiator |
On-Wall Mount | |
Mounting Type | 1/4" 20 Threaded Insert |
On-Shelf Mount | |
Mounting Type | 1/4" 20 Threaded Insert |
Inputs | |
Ethernet | Yes |
Speaker Inputs | (1) Pair of Proprietary Connector Block - na |
Audio Quality | |
Total Frequency Response | 100 Hz to 30 Hz |
Nominal Impedance | 8 ohms |
Max Sensitivity (1 watt @ 1 meter) | 92 dB |
Crossover | |
Type | A/V Receiver Crossover Setting |
A/V Receiver Crossover Settings | On Wall: Small (100 Hz) On Shelf: Small (120 Hz) |
Warranty | |
Cabinet Warranty | 5 Years |
Drivers Warranty | 5 Years |
Shipping Cartons | |
Carton | 11.25" (28.58 cm) h x 27.5" (69.85 cm) w x 5.25" (13.34 cm) d - 8.5 lbs (3.86 kg) |
Included Accessories | |
Horizontal Level Adapter | 2 |
Horizontal Leveler Foot | 2 |
Bumpers | 2 |
