Product Dimensions 1.34"h x 5.51"w x 3.86"d

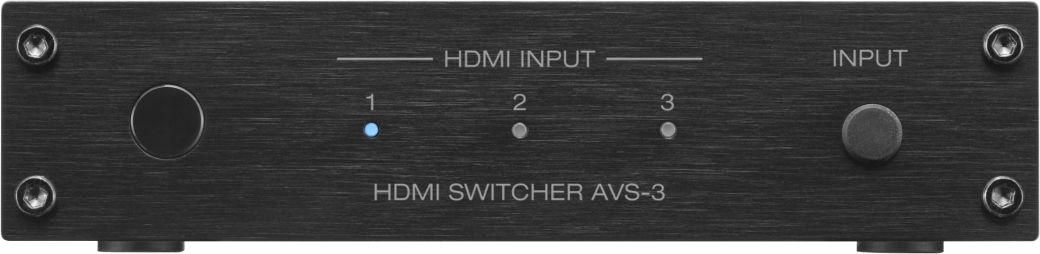

The AVS-3 connects up to three 8K devices to select Denon 8K receivers. It's compact, includes a remote, and supports automatic power-on and input switching by HDMI CEC for ease of use.Read More
The Denon 3 in/1 out HDMI Switcher allows you to connect up to three 8K devices to select Denon 8K AV receivers.
Supports automatic power-on and input switching by CEC (HDMI Switcher, AVR and display) for ease of use.
No bigger than a Blu-ray case in width and depth, the AVS-3 can fit just about anywhere. It also features a premium look thanks to a brushed black Aluminum front plate.
General Specs | |
| Product Weight (lbs.) | 0.66 |
| Depth (in.) | 3.86 |
| Width (in.) | 5.51 |
| Height (in.) | 1.34 |
| Remote Control Included | Yes |
| Number Of Audio Inputs | 3 |
| Remote Control Type | 1 IR Remote Control |
| Color Finish Name | Black |
| Color | Black |
| Shipping Height (in.) | 2.68 |
| Shipping Depth (in.) | 10.83 |
| Shipping Width (in.) | 11.22 |
Video | |
| Resolution | 480i, 480p, 576i, 576p, 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60/100/120 4K 24/25/30/50/60/100AB/120AB, 8K 24AB/25AB/30AB/50AB/60AB |
| Color | Deep Color, x.v. Color, Adobe RGB, Adobe YCC601, sYCC601, BT.2020 |
| HDR | HDR10, HDR10+, Dynamic HDR, Hybrid Log-Gamma |
| HDMI | HDMI control (CEC), 3D, ALLM (Auto Low Latency Mode), VRR (Variable Refresh Rate), QMS (Quick Media Switching), QFT(Quick Frame Transport) |
| Maximum Data Rate | 40 Gbps |
| HDCP Compliance | HDCP 1.4/2.3 |
Audio | |
| Audio Format | LPCM (2ch, 7.1ch) / Dolby Digital / DTS / Dolby Atmos / Dolby TrueHD / Dolby Digital Plus / DTS:X / DTS-HD Master Audio / DTS-HD High Resolution Audio / DTS Express / DSD / MPEG-2 AAC / MPEG-4 AAC / MPEG-H (Works with all audio formats supported by the connected AV receiver/AV amplifier) |
AC Adapter | |
| Model Identifier | SMI5-5-V-I38-C9 |
| Input Voltage | AC 100 - 240 V |
| Input AC Frequency | 50/60 Hz |
| Output Voltage | 5.0 V |
| Output Current | 1.0 A |
| Output Power | 5 W |
| Average Active Efficiency | 75.5 % |
| Efficiency at Low Load (±10 %) | 74.3 % |
| No-load Power Consumption | 0.075 W |
General - Specifications | |
| Operating Temperature | 41 °F - 95 °F (5 °C - 35 °C) |
| Power Supply | AC 100 - 230 V, 50/60 Hz |
| Power Consumption | 2.3 W |
| Power Consumption in Standby Mode | 0.2 W |
