Product Dimensions 3.39"h x 7.87"w x 9.45"d

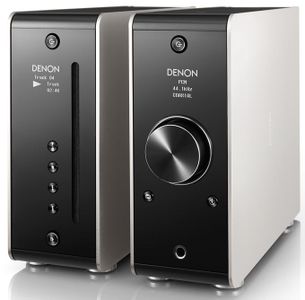

Denon® Digital Integrated Stereo Amplifier and CD Player/Transport Bundle with powerful sound and bluetooth connectibilityRead More
For more than a century, we’ve been very serious about engineering the perfect sound – that’s why, in the early years, we called our Hi-Fi products “precision audio components”. And our approach hasn’t changed since: it’s all about performance. With this in mind, we decided that, though our latest products should be compact, and with remarkably sleek styling, they should be true high fidelity components. In other words, they should be totally Denon. Introducing the Denon Design Series: Real Hi-Fi For Today’s Lifestyles.
The PMA-60 amplifier delivers true Denon sound, with outstanding performance despite its compact size. And it does so using Denon technology developed over many years, such as the Advanced AL32 audio processing it uses to turn digital data into beautiful music. With analogue and digital connectivity as well as Bluetooth®, audio streaming from your computer or a portable device is a piece of cake. And if you’re keen on high-resolution audio, this amp will be your perfect choice because of its USB-B input. Its 50W per channel output makes it suitable for a wide range of speaker types. Its compact design allows it to fit in limited spaces and you can even place the PMA-60 vertically – the orientation of the OLED display will adjust accordingly.
The advanced amplifier section incorporates Qualcomm DDFA® technology for a amazing sound from a compact form factor. The output stage circuit has a discrete construction which realizes higher Signal-to-Noise-ratio and lower distortion compared to conventional class D amplifiers. This advanced amplifier system delivers superior audio fidelity along with high amplifier efficiency at 50W into 4 ohms. The premium grade multi-way speaker connectors let you connect speaker cables via bare wire, pin connectors as well as banana plug connectors.
For the ultimate fidelity with your favorite digital audio tracks, the PMA-60 features Denon's Advanced AL32 digital audio processing system. Featured on Denon's premium audiophile disc players and digital audio components, Advanced AL32 processing upconverts, digitally filters and noise-shapes lower bit data to full 32-bits, delivering remarkable dynamic range and noticeably better low level resolution. Your digital audio tracks have never sounded better.
Via the USB-B input on the back panel, you can connect your Mac or PC to the PMA-60 and enjoy high resolution audio tracks. The PMA-60 can play high resolution PCM files of up to 32-bits/384-kHz along with high resolution DSD 2.8 MHz, 5.6 MHz and even 11.2 MHz files (DSD is the advanced digital audio coding system of SACD). A USB-A to USB-B cable is included. To eliminate induced digital noise via the USB input, the PMA-60 features a dedicated noise isolation block prior to the digital amplifier and D/A conversion block that prevents digital noise from degrading the audio fidelity.
Stream your favorite audio tracks from your portable devices via the PMA-60's Bluetooth connectivity, which features quick and easy pairing via the Bluetooth button on the front panel. For even faster pairing, the PMA-60 features NFC (Near Field Communication). Simply activate your NFC-enabled Bluetooth device and place it next to the N mark on the PMA-60 (located on the side panel), and it's instantly paired with no need for manual passcode entry. For CD-quality audio playback, the PMA-60 features the latest generation Qualcomm aptX Low Latency decoding, which also provides optimum time synchronization when playing back audio from video sources with no lip sync issues.
For top audio fidelity the PMA-60 is equipped with a dedicated headphone amplifier circuit that features a high speed ultra low distortion wideband op amp that's paired with a fully discrete final output stage. In order to accommodate the widest range of headphone types, the PMA-60 features an adjustable headphone impedance control, with 3 settings for low, medium and high impedance headphones which provide proper matching of headphone impedance and amplifier gain. The headphone jack features a 6.3mm connector for compatibility with premium home and professional studio headphone models.
The Denon Design Series stands out, thanks to its combination of soft-look aluminum, bright silver tone accents and a mixture of glossy and matt black surfaces. Crisp OLED displays tell you all you need to know at a glance, using icons and text. And the PMA-60 and DCD-50 make a real statement also when used horizontally or vertically.
The Design Series is all about superb sound – and maximum style. Only with Denon’s sophisticated digital technology, and over a century of audio engineering expertise, has it been possible to combine all that performance with a compact and truly unique design. Look at the Design Series, and you’ll agree it lacks nothing, combining beauty and performance. Listen to the Design Series, and prepare to be amazed.
Introducing the new Denon Design Series. Real Hi-Fi for today’s lifestyles. The ideal companion to our PMA-50 full digital stereo amplifier, the DCD-50 features a high quality disc drive that plays music CDs as well as data discs with MP3 and WMA tracks.
Styled identically to the PMA-50, the DCD-50 features an elegant compact chassis that can be operated when placed horizontally or vertically.
The Clear View OLED display features automatic display orientation that detects if the DCD-50 is placed vertically or horizontally and adjusts the display accordingly.
The convenient slot loading mechanism dispenses with the usual disc tray, and allows for vertical and horizontal placement.
For optimum audio quality with the PMA-50, the DCD-50 is equipped with a coaxial digital audio output - for an easy setup the required digital audio coax cable is included.
For connection to other audio components, the DCD-50 incorporates a high resolution 32-bit/192-kHz D/A conversion system and stereo analog outputs.
Featuring the same high quality styling and finish, the DCD-50 is the perfect partner for the PMA-50 digital integrated amplifier. The compact chassis features deluxe finishes including soft aluminum matte with bright silver tone accents and glossy and matte black surfaces.
When desktop or shelf space is at a premium, the DCD-50 can be vertically positioned alongside or above the PMA-50. The 4 feet are easily removable by hand, and the chassis side features caps covering 4 screw holes. Simply remove the existing caps and screw in the feet. Then, put the supplied 4 silver caps into the original bottom screw holes and you're all set.
If you prefer, you can easily configure via the remote control the DCD-50 to wakeup from standby and start immediate playback when you insert a disc. Once configured, the DCD-50 will retain your preferred mode until you decide to change it.
The OLED display shows the CD's total tracks and total time, as well as the track number and track time, and the song title, artist name and album name (depending on the disc), along with icons for random mode, repeat 1 and repeat all modes, and a folder icon for data discs.
The display automatically rotates to match the installation orientation.
The dimmer function features 3 levels of display brightness, adjustable via the remote control. When paired with the PMA-50, you can adjust the display brightness of both units at the same time.
For connection to other audio components that do not have a digital coaxial input, the DCD-50 features a high quality D/A conversion block with 32-bit/192-kHz D/A converter that delivers wide dynamic range, along with extremely low noise and distortion.
You also have the ability to activate the Auto Standby function, which will automatically put the DCD-50 in standby mode after 30 minutes of inactivity, saving energy and the environment.
The DCD-50 plays music CDs and can also play data CDs, including CD-R and CD-RW discs with MP3 and WAV audio tracks.
The supplied remote control features an ergonomically-designed layout that includes a cursor keypad, number keypad and dedicated function buttons such as random, repeat, info and program. You can control both DCD-50 and PMA-50 with a supplied single remote.
General Specs | |
Depth (in.) | 9.45 |
Height (in.) | 3.39 |
Impedance | 4; 8 Ohms |
Width (in.) | 7.87 |
Channels | 2 |
Analog Audio(RCA) Input | 1 |
Preamp Outputs | 1 |
Product Weight (lbs.) | 5.7500 |
Certifications | |
THD: | 0.0004% |
Connections | |
USB Port: | Yes |
Coaxial Digital Audio Inputs: | 1 |
Coaxial Digital Audio Outputs: | 1 |
Optical Digital(Fiber Optic) Audio Inputs: | 2 |
Analog Audio(RCA) Output: | 1 |
Specifications | |
Power On Consumption (watts): | 0.2 |
Signal to Noise Ratio: | 106 dB |
Watts RMS per Channel (4-ohms): | 50 |
Watts RMS per Channel (8-ohms): | 30 |
