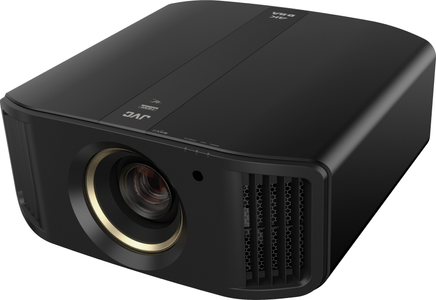

JVC DLA-RS1000 3K D-ILA Projector with HDR

Model #: DLA-RS1000

At a Glance

The new DLA-RS1000 makes affordable, high quality native 4K home theater projectors a reality. This entry model features three new 0.69 inch D-ILA devices each with 8.8 million pixel resolution. It also features a 17-element, 15-group all-glass 65mm lens. Its high contrast, high brightness, and color reproduction ensure dynamic and realistic images that are sure to wow even the most discriminating viewer.

WarningProposition 65 Warning for California Residents
JVC DLA-RS1000 3K D-ILA Projector with HDR

Input Terminals

HDMI2 (Full Speed 18Gbps HDMI/HDCP 2.2 Compatible w/HDR)

Output Terminals

3D Sync1 (Mini DIN 3pin)
Trigger1 (Mini jack, DC12V/100mA)

Control Terminals

RS-232C1 (D-sub 9pin)
LAN (RJ-45)1

3D Signal

Frame Packing720p/50 Hz, 720p/60 Hz, 1080p/24 Hz
Side-by-Side1080i/60 Hz, 1080p/60 Hz, 1080i/50 Hz, 1080p/50 Hz, 1080p/24 Hz, 720p/50 Hz, 720p/60 Hz
Top-and-Bottom720p/50 Hz, 720p/60 Hz, 1080p/24 Hz

General

Imaging Device0.69 in D-ILA Device (4096 × 2160) ×3
Native 4KYes
Resolution4096 x 2160
Lens2X Motorized 65 mm
Lens ShiftMotorized Shift±80% Vertical and ±34% Horizontal
Light SourceNSH 265W Lamp (lamp life: approx. 4500 hours when the lamp is in Low mode)
Contrast RatioNative: 40,000:1 | Dynamic: 400,000:1
Digital Video Signal480p, 576p, 720p/50 Hz, 720p/60 Hz, 1080i/50 Hz, 1080i/60 Hz, 1080p/24 Hz, 1080p/50 Hz, 1080p/60 Hz, 3840x2160/24Hz, 3840x2160/25Hz, 3840x2160/30Hz, 3840x2160/50Hz*, 3840x2160/60Hz* 4096x2160/24Hz, 4096x2160/25Hz, 4096x2160/30Hz, 4096x2160/50Hz*, 4096x2160/60Hz*
Dimensions (WxHxD-inches)19 5/8 x 9 1/4 x 19 1/2
Weight (net) (lbs)43

General Specs

Product Weight (lbs.)43
Depth (in.)19.5
Width (in.)19.63
Height (in.)9.25
Lamp Life4500
Brightness1,800 Lumens
Viewable Screen Size (in.)60" - 200"
Zoom/Focus ControlMotorized
Manufacturer Warranty3 Year
Resolution4096 x 2160
Projector Brightness1800

JVC DLA-RS1000 3K D-ILA Projector with HDR

Model #: DLA-RS1000
203363
Model #: DLA-RS1000
JVC
$99,999.00

Available in Store Only

At a Glance

The new DLA-RS1000 makes affordable, high quality native 4K home theater projectors a reality. This entry model features three new 0.69 inch D-ILA devices each with 8.8 million pixel resolution. It also features a 17-element, 15-group all-glass 65mm lens. Its high contrast, high brightness, and color reproduction ensure dynamic and realistic images that are sure to wow even the most discriminating viewer.

Get to know this product.

1,800 Lumens with High Power Lamp (PK-L2618U)

40,000:1 Native (400,000:1 Dynamic) Contrast Ratio for deep blacks

New 0.69 inch native 4K D-ILA devices (x3)

17-element, 15-group all-glass 65mm diameter high quality lens

Two 18Gbps HDMI/HDCP 2.2 Compatible Inputs

ISF (Imaging Science Foundation) Licensed

HDR10 Compatibility with Auto Tone Mapping

Improved Clear Motion Drive with Motion Enhance

Improved Multiple Pixel Control (MPC) — MPC works with 4K60P (4:4:4) signals

Low Latency Mode improves picture, speeds operation and reduces gaming/PC frame delays

New Installation Mode simplifies setup and memorizes up to 10 customizable picture preferences

Control: Control4 SDDP / LAN / RS-232C / IR / 12V Screen Trigger Output / 3D Sync Output

3 Year Advanced Replacement Warranty

Stunning Native 4K Resolution

The JVC DLA-RS1000 home theater projector features native 4K resolution that delivers images that truly rival reality. Images are so detailed, and so smooth you won't believe your eyes.

HDR compatibility w/Auto Tone Mapping

The DLA-RS1000 is compatible with HDR 10 for content such as UHD Blu-ray and HLG (Hybrid Log-Gamma) adopted in broadcasting. It is also equipped with a new feature, "Auto Tone Mapping" that automatically adjusts settings based on the mastering information included in HDR content. This feature enables different HDR images to be viewed optimally for specific content.

New 0.69 Native 4K D-ILA Devices (x3)

JVC's new 0.69 inch native 4K D-ILA device delivers the sharpest home theater image available. The 4096 x 2160 device with 3.8µm pixel pitch exceeds 4 times HD resolution— 8.8 million pixels. With original vertical orientation technology and a planarization technique that reduces light scattering and diffraction, the device achieves a very high native contrast ratio resulting in smooth, detailed images without visible pixels even on very large screens.

An Incredible Lens Delivers 4K

The DLA-RS1000 is equipped with a 65 mm diameter lens which adopts the all-glass lens of 15 groups of 17 glasses, realizing a high-resolution image with focus up to the periphery of the screen.

A Perfect Combination for Spectacular Contrast

The new 4K D-ILA device and optical engine with wire grid polarizers achieve a Native contrast ratio greater than 40,000:1. In combination with JVC's "Intelligent Lens Aperture" which analyzes the input image and automatically controls the black level, the DLA-RS1000 is able to deliver a spectacular dynamic contrast of 400,000:1 for an immersive viewing experience.

Superior Color Performance and Contrast

The DLA-RS1000 incorporates many functions that enhance the color, brightness and contrast performance.

High Contrast

High contrast ratio combined with the high brightness are what allow the DLA-RS1000 to deliver a truly immersive high quality image experience.

Auto Calibration

Optimizes image quality under various installation conditions and also compensates for the changing color balance in long-term projector usage.

Vibrant and Dynamic Imagery

Comes from the ultra-high pressure mercury lamp, highly efficient optical engine, luminance of 1,800 lm and narrow pixel gap of the D-ILA device.

4K Anamorphic Scaling

This projector is compatible with commercially available anamorphic lenses and ultra-wide format screens for an immersive movie theater experience. It also features a new scaling mode that is optimized for the full native 4096 x 2160 (17 x 9) resolution of the D-ILA device.

Installation Mode

The DLA-RS1000 is equipped with new "Installation Mode" that saves and recalls up to 10 different installation modes for different aspect ratios, lens presets, convergence and screen masking positions.

Specifications

General Specs

Product Weight (lbs.)43
Depth (in.)19.5
Width (in.)19.63
Height (in.)9.25
Lamp Life4500
Brightness1,800 Lumens
Viewable Screen Size (in.)60" - 200"
Zoom/Focus ControlMotorized
Manufacturer Warranty3 Year
Resolution4096 x 2160
Projector Brightness1800

General

Imaging Device0.69 in D-ILA Device (4096 × 2160) ×3
Native 4KYes
Resolution4096 x 2160
Lens2X Motorized 65 mm
Lens ShiftMotorized Shift±80% Vertical and ±34% Horizontal
Light SourceNSH 265W Lamp (lamp life: approx. 4500 hours when the lamp is in Low mode)
Contrast RatioNative: 40,000:1 | Dynamic: 400,000:1
Digital Video Signal480p, 576p, 720p/50 Hz, 720p/60 Hz, 1080i/50 Hz, 1080i/60 Hz, 1080p/24 Hz, 1080p/50 Hz, 1080p/60 Hz, 3840x2160/24Hz, 3840x2160/25Hz, 3840x2160/30Hz, 3840x2160/50Hz*, 3840x2160/60Hz* 4096x2160/24Hz, 4096x2160/25Hz, 4096x2160/30Hz, 4096x2160/50Hz*, 4096x2160/60Hz*
Dimensions (WxHxD-inches)19 5/8 x 9 1/4 x 19 1/2
Weight (net) (lbs)43

Input Terminals

HDMI2 (Full Speed 18Gbps HDMI/HDCP 2.2 Compatible w/HDR)

Output Terminals

3D Sync1 (Mini DIN 3pin)
Trigger1 (Mini jack, DC12V/100mA)

Control Terminals

RS-232C1 (D-sub 9pin)
LAN (RJ-45)1

3D Signal

Frame Packing720p/50 Hz, 720p/60 Hz, 1080p/24 Hz
Side-by-Side1080i/60 Hz, 1080p/60 Hz, 1080i/50 Hz, 1080p/50 Hz, 1080p/24 Hz, 720p/50 Hz, 720p/60 Hz
Top-and-Bottom720p/50 Hz, 720p/60 Hz, 1080p/24 Hz
