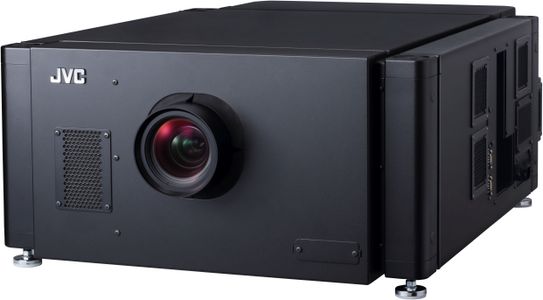

    JVC DLA-VS4010NLG D-ILA Projector


    Model #:

    DLA-VS4010NLG

    Model #: DLA-VS4010NLG
    203433
    JVC
    $99,999.00

    At a Glance

    Product Dimensions 13.5"h x 26"w x 36.8"d

    The DLA-VS4010NLG is an advanced 4K2K projector incorporating three 1.27-inch (Diag.) 4K2K D-ILA display devices. It produces extremely high-quality images for use in planetariums, museums, simulators, and medical institutions, as well as high-spec design and monitoring facilities. Its Blu-Escent™ solid state laser-phosphor light source delivers 6,000 ANSI lumens with a stunning 10,000:1 native contrast ratio. Combining superb definition and resolution with low operating cost, the DLA-VS4010NLG achieves ultra-high resolution of approximately 10 megapixels (4,096 x 2,400), which is five times that of full HD.Read More

    Available in Store Only

    Get to know this product.

    Product Overview

    Product Overview

    The DLA-VS4010NLG is an advanced 4K2K projector incorporating three 1.27-inch (Diag.) 4K2K D-ILA display devices. It produces extremely high-quality images for use in planetariums, museums, simulators, and medical institutions, as well as high-spec design and monitoring facilities. Its Blu-Escent™ solid state laser-phosphor light source delivers 6,000 ANSI lumens with a stunning 10,000:1 native contrast ratio. Combining superb definition and resolution with low operating cost, the DLA-VS4010NLG achieves ultra-high resolution of approximately 10 megapixels (4,096 x 2,400), which is five times that of full HD.

    The projector can simultaneously display two or four screens in WUXGA (1,920 x 1,200) resolution. Multi-screen projection is facilitated by four DVI (Dual-Link) input terminals supporting an array of PC input formats. The DLA-SH7NLG also offers a low latency mode for simulation environments.

    The DLA-VS4010NLG's laser-phosphor illumination system is based on JVC's proprietary Blu-Escent™ technology. The light engine uses blue laser diodes, a stationary inorganic phosphor and JVC's color management system. BLU-Escent™ enables a powerful 6,000 lumen light output and more than 20,000 projection hours. Using Laser Diodes as the light source, light output can be controlled instantly enabling a contrast ratio of ∞:1. The projector controls the laser output accordingly to the scene's brightness, which creates a picture that is as close to human perception as possible. Power is adjustable from 20-100% in 88 steps.

    Its well though-out design offers operational flexibility, including the ability to stack two projectors for 3D images or installation on a ±90-degree tilt. The DLA-VS4010NLG weighs about 162 pounds, excluding lens.

    Three different lenses are available, including short-focus and telescopic models

    The DLA-VS4010NLG operates on normal AC 100-220V power and consumes less than 1,250 watts. Convergence is adjustable to 1/10 pixel accuracy via GUI control; three gamma tables are included. Six test patterns, including a crosshatch and color bars, enable image adjustment without external signal sources. Projection configuration data is easily stored and uploaded from a USB memory device. The Ethernet-compatible DLA-VS4010NLG can be configured via a PC Web browser, and multiple projectors are networkable for operation via a single PC.

    Main Features:

    Solid State Laser-Phosphor Illumination System

    4096x2400 Pixels, 11% more Vertical Resolution & Pixels than other 4K devices

    3 Active Matrix D-ILA Devices(1.27? Diag)

    Light Output: 6000 ANSI Lumens

    Contrast Ratio - 10,000:1 (typical)

    RGB Convergence in 1/10 pixel increments

    Input via 4xDVI-D, Single/Dual Link

    Communication - 100BaseT Ethernet, RS-232C, USB

    Noise Level 52.3dB (A) at 39.4?/1m (3.3ft) (32-79°F, 0-26°C )

    Net Weight (less lens): 162lbs/73.5kg

    Applications

    Simulation

    Immersive Displays (such as CAVE)

    Planetariums

    Theme Parks

    Staging/Rental

    Ultra-high Resolution Command/Control

    Ultra-high Resolution Medical Imaging

    Advanced Visualization and 3D display

    Useful Documents
    Specifications

    General Specs

    Product Weight (lbs.)162
    Depth (in.)36.8
    Width (in.)26
    Height (in.)13.5
    Lamp Life20000
    Brightness6000 ANSI Lumens
    Manufacturer Warranty1 Year Parts & Labor
    Projector Brightness6000

    General

    Image Device3 D-ILA® devices (1.27 inches diagonal), 4096 x 2400, 6.8um Pixel Pitch, 0.25um Pixel Gap, >93% Aperture Ratio
    Brightness6000 ANSI Lumens
    Display Resolution4096 x 2400 Pixels (17:10 Aspect Ratio)
    Contrast RatioGreater than 10,000:1 (Sequential)
    UniformityGreater than 85%
    DVI Input-Supported Resolutions4096x2400, 4096x2160, 3840x2400, 3840x2160, 2048x1200, 2400x1080, 1920x1080, 1920x1200, 1600x1200, 1280x1024, 1024x768, 800x600, 640x480
    DVI Clock165MHz (single link), 330MHZ (dual link)
    Latency<10ms in 4-stripe mode
    Color Bit Depth8 bits maximum single link DVI, 12 bits maximum dual link DVI
    I/O TerminalsDVI-D (dual link) x 4, Ethernet, RJ45 x 1, USB, Type B (slave) x 1, RS-232C, D-Sub 9 pin (male) x 3
    Remote ControlIntegrated Web Browser Interface, RS-232C Fully featured control protocol
    Projection Lens (Optional)GLMS4011SG - 1.1:1 Fixed lens, ±25% V offset, GLMS4015SZG - 1.5-1.84:1 Zoom lens,±50% V and ±25% H offset, GLMS4021SZG - 2.15-3.65:1 Zoom lens,±50% V and ±25% H offset
    Power RequirementAC 100V-120V, 200V-240V, 50/60Hz (single phase)
    Power Consumption1250 Watts Maximum, 11.5A/5.75A, AC 110V/240V
    Noise Level(0-26°C, 32- 52.3dB (A) at 39.4”/1m (3.3ft)
    Operating Altitude<6600ft (2000m) for safe operation, <4900ft (1500m) for guaranteed performance
    Installation OrientationVertical ±90
    Airflow Requirements106cfm (3m3) per minute minimum
    Dimensions ( W x H x D )26.0” x 13.5” x 36.8” (660 x 342 x 934 mm)
    Weight162lbs/73.5kg, Without Lens
    Supplied AccessoriesPower Cord *Instruction manual is available from the JVC site
    WarrantyOne-Year Parts and Labor (per JVC Limited Warranty)

    Light Source

    Blu-Escent Laser-Excited PhosphorYes
    2-Step Power Control (2 customizable modes)Yes
    Adjustable Power 20%-100% (88 steps)Yes
    Auto Intensity mode capableYes
    Light Source LifeAverage 20,000hrs at 100% output
