Product Dimensions 5.3"h x 13.13"w x 13.06"d

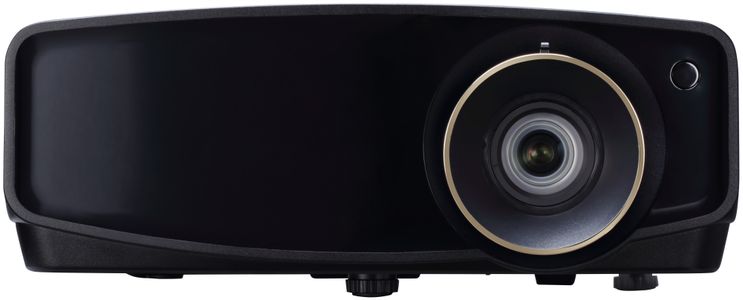

The LX-UH1 is a high-performance 4K UHD/HDR home theater projector with compact design and wide lens shift for easy installation; also thanks to its 2,000-lumen output there is no need to always pull the curtain. This projector is ideal for all your broadcast, streaming and BD viewing.Read More
Compact design for installation convenience: just 33 cm by 33 cm, and less than 13.5 cm high (Approx. 13" by 13", and 5.3" in height)
Compatible with HDMI standards (4K/60P 4:4:4) and HDCP 2.2
4K input specs: Supports 4K/60p, 4:4:4/36bit, 4K/60p 4:2:2/36bit, and 4K/24p 4:4:4/36bit signals - for more vivid colors and subtle gradations
4K resolution (3840 x 2160) achieved
Connectors: PC in, HDMI 1 with HDCP2.2 support, HDMI 2, USB Mini B, Trigger (12 V), USB Mini A (1.5 A power supply), and RS-232
0.47-inch DMD for bright high-definition 4k images
Dynamic contrast ratio: 100,000:1
Brightness: 2,000 lm
100% coverage of Rec. 709 gamut
Wide lens shift function: +/-60% vertical, +/-23% horizontal
1.6x high-resolution lens
HDR (high dynamic range) for more realistic, dynamic images
HDCP2.2 compatibility with HDMI 1 terminal to support video-streaming services and copyright-protected content including UHD BD discs
Available in 2 colors (black and white)
General Specs | |
| Product Weight (lbs.) | 10.2 |
| Depth (in.) | 13.06 |
| Width (in.) | 13.13 |
| Height (in.) | 5.3 |
| Brightness | 2,000 Lumens |
| Manufacturer Warranty | 1 Year Parts & Labor |
| Projector Brightness | 2000 |
Picture | |
| Device | 0.47" DMD (1920 x 1080) |
| Resolution | 3840 x 2160 |
| Lens shift function | +/-60% vertical & +/-23% horizontal, motorized |
| Light source lamp | NSH 240 W |
| Lamp life | Approx. 4,000 hours in normal mode, 10,000 hours in eco mode |
| Brightness | 2,000 lm |
| Contrast Ratio | Dynamic: 100,000:1 |
| PC | 1 (D-sub 15pin) |
| RS232C | 1 (D-sub 9-pin) |
General | |
| Noise level | 29 dB (Eco)/ 33 dB (Normal) |
| Power requirement | AC110 V-240 V, 50/60 Hz |
| Dimensions: W x H x D, mm | 333 x 135 x 331.5 mm |
| Dimensions: W x H x D, inches | 13-1/8 x 5-5/16 x 13-1/16 |
| Weight, kg | 4.8 |
| Weight, lbs | 10.56 |
