Product Overview

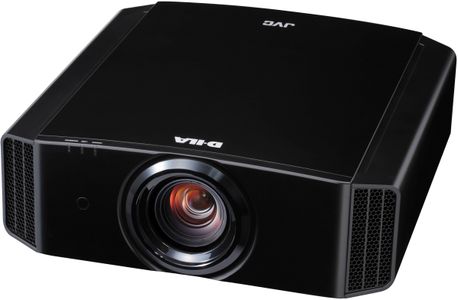

The DLA-X570R delivers stunning picture detail and an unprecedented value thanks to JVC's exclusive 4K e-shift4 technology. It accepts native 4K 60P (4:4:4) content through Full Speed 18Gbps HDMI/HDCP 2.2 compatible inputs and up-converts existing 1080P sources to 4K precision. Three discrete D-ILA devices produce a stable image with no flicker and class leading 40,000:1 Native Contrast Ratio for peak whites and deep blacks.
For 2017, JVC projectors add an Auto HDR picture preset for best compatibility with UHD 4K HDR content and a low latency mode for improved gaming. JVC has also updated the HDMI connectivity and added Hybrid Log Gamma for future HDR broadcast and streaming content.
The Competitive Advantage
40,000:1 Native Contrast Ratio
Intelligent Lens Aperture for Dynamic Contrast Ratio of 400,000:1
1800 Lumens with High Power Lamp (PK-L2615U); 265W High/200W Normal
4K e-shift4
Low Latency Mode for Improved Gaming
Auto HDR (High Dynamic Range) Picture Preset
Motion Enhance (2D, 3D, 4K) with Clear Motion Drive
Multi Pixel Control (MPC) with Auto Mode for ease of use with MPC works with 4K60P (up to 4:4:4) signals
Lens Memory with 5 user adjustable presets
Motorized 2X Zoom Lens (1.4:1 – 2.8:1)
Simplified 6-Axis Color Management System
Manual Gamma Control included with JVC Calibration Software
Control4 SDDP (Simple Device Discovery Protocol)
6th Generation 1920x1080 DILA devices
Ultra Quiet Operation (21db/Low Lamp)
Clear Black Processing improves local area contrast
Screen Adjustment Modes
Convergence Correction — 1/16th pixel increments with 2 memory positions
2 Year Warranty
Dual Full Speed 18Gbps HDMI/HDCP 2.2 Compatible Inputs
Compatible with full spec native 4K signals such as 4K60p 4:4:4, 4K60p 4:2:2/36bit and 4K24p 4:4:4/36bit
Compatible with 4K streaming devices and UHD BD content
Compatible with DCI Color Space
3D Enabled (Active Shutter Method)
Accepts Frame Sequential, Side-by-Side, and Top-Bottom
3D Anamorphic Capable
3D Crosstalk Cancellation
3D Parallax Adjustment
Optional RF Active Shutter 3D Glasses (PK-AG3G) and RF 3D Emitter (PK-EM2G)
Inputs & Outputs
Dual Full Speed 18Gbps HDMI/HDCP 2.2 Compatible Inputs
RS-232C
RJ45 LAN Connection
12V Trigger
3D Synchro
