Product Overview

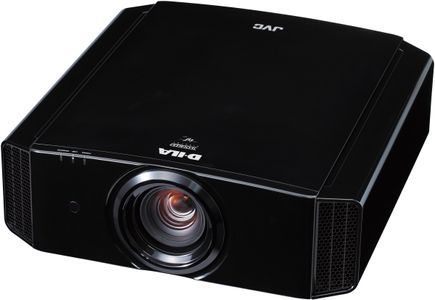

The DLA-X770R produces exquisite quality images with JVC's exclusive 4K e-shift4. It accepts native 4K 60P (4:4:4) content through Full Speed 18Gbps HDMI/HDCP 2.2 compatible inputs, and offers a class leading 130,000:1 Native Contrast Ratio. Three discrete D-ILA devices produce a flicker free image with 4K precision. The DLA-X770R is THX Certified and meets or exceeds their high standards.
Features
New for 2017 130,000:1 Native Contrast Ratio
Intelligent Lens Aperture for Dynamic Contrast Ratio of 1,300,000:1
New for 2017 1900 Lumens with High Power Lamp (PK-L2615U) 265W High/200W Normal
4K e-shift4
New for 2017 Low Latency Mode for Improved Gaming
New for 2017 Auto HDR (High Dynamic Range) Picture Preset
Motion Enhance (2D, 3D, 4K) with Clear Motion Drive
Improved for 2017 Multi Pixel Control (MPC) with Auto Mode for ease of use. MPC works with 4K60P (up to 4:4:4) signals.
THX Certification ensures precise reproduction of 2D and 3D at home
ISF C3 Licensed - Quality installers can calibrate projector to your room
Lens Memory with 10 user adjustable presets
Motorized 2X Zoom Lens (1.4:1 – 2.8:1)
Simplified 6-Axis Color Management System
Manual Gamma Control included with JVC Calibration Software
Control4 SDDP (Simple Device Discovery Protocol)
6th Generation 1920x1080 DILA devices
Real Color Imaging Technology
Ultra Quiet Operation (21db/Low Lamp)
Clear Black Processing improves local area contrast
Screen Adjustment Modes
Convergence Correction — 1/16th pixel increments with 2 memory positions
3 Year Warranty
Improved for 2017 Dual Full Speed 18Gbps HDMI/HDCP 2.2 Compatible Inputs
Compatible with full spec native 4K signals such as 4K60p 4:4:4, 4K60p 4:2:2/36bit and 4K24p 4:4:4/36bit
Compatible with 4K streaming devices and UHD BD content
Compatible with DCI Color Space
3D Enabled (Active Shutter Method)
Accepts Frame Sequential, Side-by-Side, and Top-Bottom
3D Anamorphic Capable
3D Crosstalk Cancellation
3D Parallax Adjustment
Optional RF Active Shutter 3D Glasses (PK-AG3G) and RF 3D Emitter (PK-EM2G)
Inputs & Outputs
Dual Full Speed 18Gbps HDMI/HDCP 2.2 Compatible Inputs
RS-232C
RJ45 LAN Connection
12V Trigger
3D Synchro
