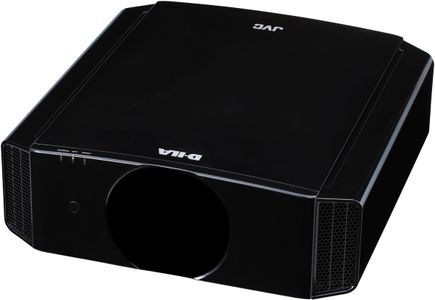

    JVC Visualization 1080p D-ILA Projector

    JVC

    Model #:

    DLA-VS2200G

    Model #: DLA-VS2200G
    203532
    JVC
    $99,999.00

    At a Glance

    Product Dimensions 7.25"h x 18"w x 18.6"d

    The DLA-VS2200G and DLA-VS2200ZG are latest additions to the Visualization Series. They are designed for 2D simulation and offer improved native contrast, improved gamma tracking performance, and are equipped with a long life illumination system. Since the size is identical to previous models, they can be used as drop-in replacements for previous models.Read More

    Available in Store Only

    Get to know this product.

    Product Overview

    Product Overview

    1920 x 1080 Native Resolution

    3 Active Matrix, 0.7" Digital D-ILA Devices

    >18,000:1 Contrast Ratio

    Digital Smear Reduction via Black-frame Insertion

    23ms Frame Delay

    1080p60/50 Synchronous Operation

    850 ANSI Lumens (minimum)

    12-Bit Gamma Correction

    7- Axis Color Management System

    4000 hour, 230W Ultra High Pressure Lamp for Low Operating Cost

    Rugged Chassis for Motion-Base Applications

    8 Step Lamp Aperture Control

    Sim Specific D-ILA Devices

    High Contrast IR output for stimulated NVG applications

    User Adjustable Gamma Tracking

    Long-life Wiregrid Polarizers

    Long-life Inorganic Optical Components

    Available 1.0:1 and 1.2:1 Fixed Lenses: ±50% V Offset, ±25% H Offset (DLA-VS2200G)

    Wide-Range Zoom Lens, 1.4-2.8:1 Throw Ratio: ±80% V Offset, ±34% H Offset (DLA-VS2200ZG)

    Flexible Orientation- ± 90 Deg. Pitch, ± 10 Deg. Roll

    11x11 Matrix, 1/16 pixel Micro-Convergence Control

    Comprehensive LAN/RS232 Control Protocol

    Configuration Save/Restore Capability

    Useful Documents
    Manual
    Specification Sheet
    Specifications

    General Specs

    Product Weight (lbs.)34
    Depth (in.)18.6
    Width (in.)18
    Height (in.)7.25
    Lamp Life4000
    Manufacturer Warranty2 Year Parts & Labor

    Connections

    HDMI Inputs:2
    Ethernet Port:1

    Specifications

    Screen Resolution:1080p
    Aspect Ratio:16:9
    Power Off Consumption (watts):7
    Lamp Type:Ultra High Pressure Type 230W
