Klipsch® Reference Powered Turntable System

Product Overview

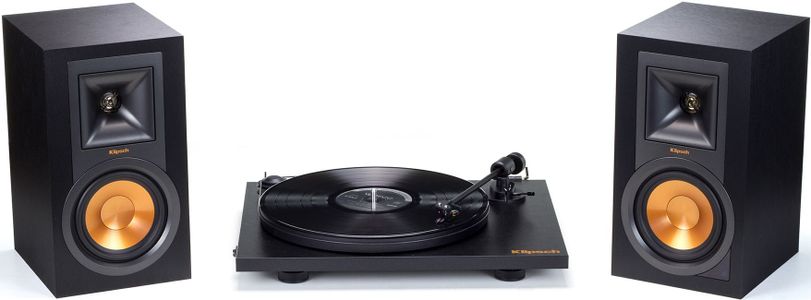

No receiver required. Just add vinyl. The R-15PM powered monitors with built-in phono pre-amp are perfectly matched to the custom Klipsch x Pro-Ject Primary turntable to deliver room-filling sound without the hassle of setting up mounds of equipment.

1 Pair R-15PM powered monitors

1 Special edition Pro-Ject Primary turntable

Super easy setup

Incredible acoustical performance

Bluetooth® with apt-X decoding

Computer and TV ready

The Speakers

Crisp and detailed sound comes thanks to a true two-way speaker with Klipsch’s legendary 90x90 Linear Travel Suspension (LTS) Tractrix horn, rigid Injection Molded Graphite (IMG) woofer, and tuned rear-firing bass port. All this horn-loaded nectar is powered by Klipsch-customized and fully integrated high-resolution amplifier, jam-packed with every connection you need. Add subwoofer to taste. Use the included remote to do everything else.

Crossover Frequency: 1800 Hz

1” (2.54cm) Aluminum diaphragm compression driver mated to 90° x 90° square Tractrix Horn

5.25” (13.3cm), copper spun magnetically shielded IMG woofer

Enclosure Material: MDF

Enclosure Type: Bass-reflex via rear-firing port

1 x pair of RCA phono level inputs with switch for Phono/Line input versatility (Phono Preamp with ground screw terminal)

1 x USB digital audio from a PC or Mac single RCA line level output for connection to sub

1 x Digital optical

1 x 3.5mm mini jack line level

Bluetooth® wireless technology

Dimension: 7" x 12.5" x 8.11" (WxHxD)

Weight: 10.3 lbs.

Brushed Black Polymer Veneer Finish

The Turntable

Pro-Ject’s special edition Primary turntable is expertly hand-crafted to extract every detail from the vinyl grooves of your favorite LPs. Packing a low vibration synchronous AC motor, a perfectly-matched 8.6” aluminum tone-arm, and an audiophile-grade, low-distortion Ortofon OM 5e magnetic cartridge, the Pro-Ject Primary and R-15PM powered monitors are a match made in heaven.

Drive System: Belt-Drive with Silicone Belt

33/45 RPM Nominal Speeds

Ortofon OM 5E Magnetic Cartridge

8.6” Aluminum - Custom Matched to Ortofon OM 5E Cartridge

Includes RCA cable, Acrylic Dust Cover, Felt Mat, 15V/500mA DC universal power supply

Power Consumption 4.5W

Dimensions: 16.5" x 4.4" x 13" (WxHxD)

Weight: 8.8 lbs.

The Setup

No pre-amp required, no receiver needed, and no need to mess with counterweights or skating adjustments. Find a wall outlet, setup the turntable and speakers, plug them in, and flip the switch: you’re ready to rock.
