Product Dimensions 7.3"h x 17.3"w x 15.3"d

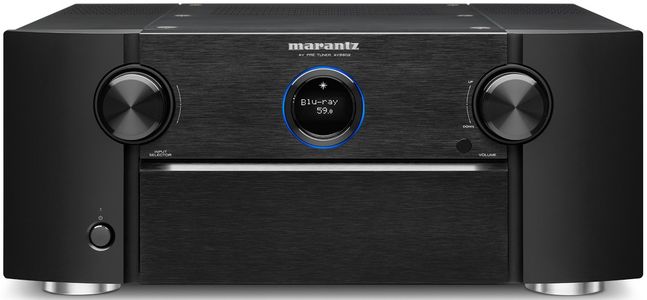

The Marantz AV8802A 11.2 channel A/V pre-amp/processor is packed with the latest audio and video technologies, all designed to provide you with the ultimate music and movie surround sound experience.Read More
Most remarkably, the AV8802A features breathtaking 3D-sound options, including Dolby Atmos® and Auro- 3D® (paid upgrade required), giving you the ability to add additional speakers for a truly expansive and immersive surround sound experience. The AV8802A further enhances audio quality by delicately handling all signals via the Marantz HDAMs in Current Feedback topology before being passed to the XLR outputs and separate power amp. The video section with full HDCP 2.2 support features advanced high resolution video processing and decoding, and is equipped with video upscaling that upconverts standard definition (SD) video sources from legacy components to high definition 4K/60Hz full-rate video. The video images at this resolution are dazzlingly vibrant and sharp. What’s more, the AV8802A includes full networking capabilities for Wi-Fi and Bluetooth to open up a whole new world of listening enjoyment. At the same time, Vinyl fans will surely appreciate the inclusion of a phono input, and there is no need for a separate tuner, as the AV8802A features a built-in HD Radio, AM sounds like FM, and FM sounds like CD.
Wi-Fi and Bluetooth built in
Dolby Atmos
Auro-3D® upgrade-ready (up to Auro 10.1)
Toroidal transformer & copper plated chassis
Three piece top cover construction
High performance power supply with 4x 10.000µF capacitors
Audiophile 32bit / 192kHz DA-Converters
13.2 ch preout (XLR 13.2) with 11.2 ch processing
Current Feedback circuitry with Marantz New HDAM
Audyssey MultEQ XT32, LFC, Sub EQ HT, Pro ready
Audyssey DSX; dts-Neo:X (11.1ch)
Latest HDMI version with 4K 60Hz 4:4:4 resolution
Full HDCP 2.2 support
7+1 HDMI in / 3 out (4K 60Hz, 4:4:4, 3D, ARC, Deep Color)
HDMI scaling 1080p, 4K 60Hz
MP3, WAV, AAC, WMA, AIFF
HD Audio streaming: FLAC 192/24, DSD, ALAC
Spotify Connect®, Pandora®, SiriusXM™, Airplay®, Flickr, and Internet Radio support (where available).
Setup Assistant and advanced GUI
Marantz Remote App for iOS and Android™ devices
General Specs | |
| Product Weight (lbs.) | 30.6 |
| Depth (in.) | 15.3 |
| Width (in.) | 17.3 |
| Height (in.) | 7.3 |
| Analog Audio(RCA) Output | 2 |
| Analog Audio(RCA) Input | 8 |
| Bluetooth | Yes |
| Bluetooth Capable | Yes |
Certifications | |
| Ipod Ready: | Yes |
Connections | |
| HDMI Inputs: | 8 |
| Ethernet Port: | 1 |
| USB Port: | 2 |
| Component Video Inputs: | 3 |
| Composite Video Inputs: | 5 |
| Coaxial Digital Audio Inputs: | 2 |
| Component Video Outputs: | 2 |
| Composite Video Outputs: | 2 |
| HDMI Outputs: | 3 |
| Optical Digital(Fiber Optic) Audio Inputs: | 2 |
Features | |
| HD Radio Ready: | Yes |
| Satellite Radio Ready: | Yes |
| Tuning Presets: | Yes |
| HDMI Standby Pass-through: | Yes |
| Airplay: | Yes |
| Pandora Streaming: | Yes |
| AM/FM Tuner Built-In: | Yes |
Specifications | |
| Power On Consumption (watts): | 90 |
| Power Off Consumption (watts): | 0.2 |
| Channels: | 11.2 |
