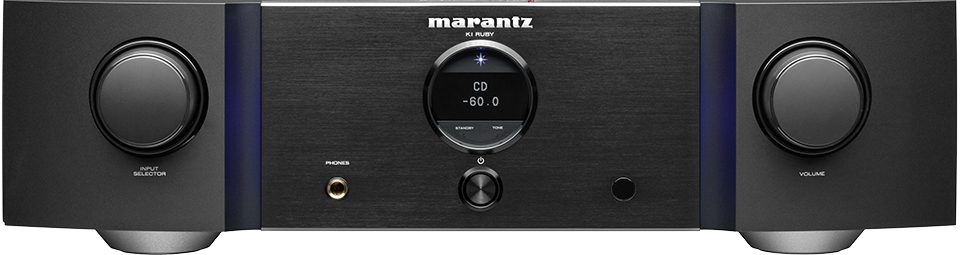

Marantz® 2 Channel Integrated Amplifier
At a Glance
Product Dimensions 5"h x 17.32"w x 17.83"d
Enjoy a fully discrete two-stage design amplifier with separate power supplies for the pre-amplifier and power amplifier for signal purity and exceptional audio quality, every time.Read More
Get to know this product.
Product Overview
Product Overview
Built To Perform
Constructed to the highest standards with a copper-plated chasses to reduce mechanical and electrical interference
Masterfully Tuned
Complete with thoughtful engineering, painstaking tuning and extensive listening sessions, PM-KI Ruby achieves the elevated output worthy of its name.
Pure Sound
Built to leverage enhancements, maintain the purest possible sound and supply the power needed to drive the most demanding speakers.
Balanced Power Amplification
Drawing on design elements of the PM-10, the PM-KI Ruby is built to leverage enhancements, maintain the purest possible sound and supply the power needed to drive the most demanding speakers.
Current Feedback Amplifier
Current Feedback amplification is a well-known, Marantz-original circuit technology, thoughtfully designed to match the expectations of your Hi-Res music for wide-bandwidth and ensured high-speed reproduction.
Marantz HDAM Technology
Marantz developed its own discrete circuit boards called Hyper-Dynamic Amplifier Module, or HDAM, to replace the chip-based amps used elsewhere. Using discrete surface mount components with short mirror-image left and right signal paths, the HDAM outperform the regular integrated Op-amps dramatically in Slew Rate and noise level.
Marantz Musical Premium Phono EQ
Designed to deliver optimal sound quality by simplifying the signal path, the Marantz Musical Premium Phono EQ stage in the PM-KI-Ruby amplifier can be used with both moving magnet and low-output moving coil cartridges, thanks to a built-in phono amplifier.
High Quality Volume Control
Newly developed electric volume control uses the latest volume control IC to realize better channel separation, dynamic range and distortion-reduction, while retaining the operational feel of an analog volume control device. The amplifier employs new Marantz-designed electric volume control for high linearity and best-in-class channel
Useful Documents
Specifications
General Specs | |
| Depth (in.) | 17.83 |
| Height (in.) | 5 |
| Width (in.) | 17.32 |
| Channels | 2 |
| Frequency Response | 5 Hz-50 kHz |
| MPN | PMKIRUBY |
| Color Finish Name | Black |
| Product Weight (lbs.) | 34.61 |
| Color | Black |
| Amplifier Channels | 2 |
Features | |
| Channels | 2 |
| Current Feedback Topology | Yes |
| Phono EQ | Marantz Musical Premium Phono EQ |
| HDAM version | SA3, SA2 |
| Power Transformer: Toroidal / El | Yes / No |
| High Grade Audio Components | Yes |
| Customised Components | Yes |
| Symmetric PCB Layout | Yes |
| Aluminium extrusion heat sink | Yes |
| Balance / Bass / Treble / Loudness | Yes / Yes / Yes / No |
Others | |
| Linear Drive Power Supply | Yes |
| Liniear volume control | Yes |
| BI-AMP and Multichannel option | No |
| Shottky diodes | Yes |
| Input buffer amp | No |
| System block shielding: Copper / metal / none | Yes / No / No |
| Double Layer Bottom Plate | Yes |
| Low noise OLED display | Yes |
| Source Direct | Yes |
| Power Amp direct | Yes |
| Standby Mode | Yes |
Inputs/Outputs | |
| Audio Inputs | Yes |
| Phono Input: MM / MC | Yes / Yes |
| Marantz Musical Premium Phono EQ | Yes |
| Audio Outputs | 2 |
| Power Amp Direct IN | Yes / No |
| Cinch input | [CD][PHONO]:Thick nickel plated independent terminals Others: Gold plated |
| Speaker Terminal: Screw / Marantz / WBT | No / Yes /SPKT-100+/ No |
| Number of terminals | 2 |
| D-Bus | Yes |
| Floating Control Bus (3.5 mm mono jack x 2) | Yes |
| Headphone Out | Yes |
Specifications | |
| Power Output (8 / 4 Ohm RMS) | 100 W / 200 W |
| Frequency response | 5 Hz-50 kHz |
| Total Harmonic Distortion | 0.01% |
| Damping Factor | 500 |
| Input Sensitivity: MM | 2.3 mV / 39 kOhm |
| Input Sensitivity: MC | 250 u V / 100 ohm |
| Signal to Noise Ratio: MM/MC | 88 / 75 dB |
| Input Sensitivity: High level | 220 mV / 13 kOhm |
| Signal to Noise Ratio: High level | 107 dB (2V input) |
| Input Sensitivity: Power Amp Direct IN | 1,1V / 13 kohm |
General | |
| Available Colors: Gold / Silver / Black / Silver-Gold | No / No / Yes / No |
| Aluminum Front Panel | Yes |
| Power Consumption in W | 130 W |
| Standby Consumption in W | 0,2 W |
| Auto Power off | Yes |
| Detachable Power Cable | Yes |
| Remote Control | RC005PMSA |
| System Remote Function | Yes |
| Maximum Dimensions (W x D x H) in inches | 17.32 x 17.83 x 5 |
| Weight in lbs. | 34.61 |
