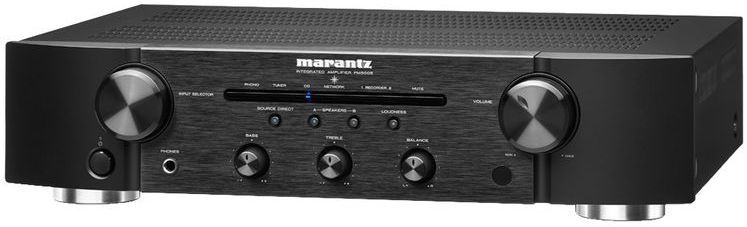

Marantz® Black 2 Channel Integrated Amplifier

Model #: PM5005

$499.00

At a Glance

Featuring premium audiophile design at an affordable price, the Marantz PM5005 stereo integrated amplifier features all-analog circuitry from input to output, and delivers wide frequency response, high dynamic range along with true low impedance drive capability and is rated to handle both 8 ohms and 4 ohms speakers.

WarningProposition 65 Warning for California Residents
Marantz® Black 2 Channel Integrated Amplifier

Additional Features

HDAM VersionSA3, SA2

General

Power Consumption350W
Standby Consumption0.3 W
Remote ControlRC002PMCD

In/Outputs

Audio Inputs6
Audio Outputs2
Speaker TerminalTransparent, Screw type
Number of Terminals4

General Specs

Depth (in.)14.57
Height (in.)4.13
Width (in.)17.32
Channels2
Analog Audio(RCA) Input6
Headset JackYes
Product Weight (lbs.)14.7700

Additional Specifications

Power Output (8 / 4 Ohm RMS)40 W / 55 W
Frequency response10 Hz-50 kHz
Total Harmonic Distortion0.01 %
Damping Factor100
Input Sensitivity: MM2.2 mV / 47 kOhm
Signal to Noise Ratio: MM83 dB
Input Sensitivity: High level200 mV / 20 kOhm
Signal to Noise Ratio: High level103dB (2V input)

Marantz® Black 2 Channel Integrated Amplifier

Model #: PM5005
40041
Model #: PM5005
Marantz
$499.00

Available in Store Only

$499.00

At a Glance

Featuring premium audiophile design at an affordable price, the Marantz PM5005 stereo integrated amplifier features all-analog circuitry from input to output, and delivers wide frequency response, high dynamic range along with true low impedance drive capability and is rated to handle both 8 ohms and 4 ohms speakers.

Get to know this product.

Featuring current feedback power amplifier circuitry (a Marantz innovation), the power amplifier section also features pure discrete analog circuitry along with multiple high current discrete power output devices that are easily able to handle lower impedance loads and deliver high instantaneous peak current capability.

Rated at 40 watts per channel into 8 ohms and 55 watts per channel into 4 ohms, the PM5005 features A and B speaker outputs, for two sets of stereo speakers, or for bi-wiring with compatible stereo speakers.

The deluxe remote control provides discrete source input buttons, and includes additional buttons for direct control of the matching Marantz CD5005 player and Marantz Network Audio Players.

Current Feedback Discrete Power Amplifier

The PM5005 features a power amplifier section based on our renowned current feedback technology, a Marantz innovation that debuted on our very first power amplifier. High current discrete power output devices mounted on a generously-sized aluminum heat sink together provide high instantaneous peak current capability, and are easily able to handle dynamic bursts into lower impedance 4 ohm speaker loads (the current capacity for each amplifier channel is a substantial 16 amps).

Wide Range of Connectivity Options

Veteran audiophiles and new generation music lovers both know that the sonic allure of vinyl records often can't be matched by digital audio sources, and the PM5005 includes multiple analog inputs including a MM (moving magnet) phono input.

There are also dual recording inputs and outputs, along with a headphone amplifier jack on the front panel, and the high grade speaker connectors can accept multiple speaker cable termination types.

The audio input and output jacks are all gold plated for maximum signal integrity.

Source Direct Function

To ensure the shortest signal path and the highest fidelity, the PM5005 features our Source Direct function, which bypasses the tone control and loudness control circuitry.

Fully Discrete Volume Amplifier Circuit

The volume amplifier circuit features fully discrete circuitry (no op amp chips in the signal path) for the widest bandwidth, lowest distortion, and highest dynamic range.

Elegant Remote Control

The elegant remote control includes additional function buttons that let you control a Marantz CD player and a Marantz Network Audio Player, for total system control with a single remote.

Versatile Remote Control Options

The PM5005 features remote control input and output jacks that let you hard wire the amplifier directly to a Marantz CD player, which in turn can be hard wired to a Marantz Network Audio Player.

For example, you can place a Marantz CD player on an open shelf for easy access, and place the PM5005 and a Marantz Network Audio Player tucked away in a cabinet and hidden from view, and control all 3 units with a single remote, which helps to eliminate component clutter.

60+ Years of Audiophile Heritage

Founded in 1953, Marantz has a long and rich history of designing audiophile components that have been embraced by music lovers and critical listeners around the world. Because Music Matters so much in our lives, the PM5005 carries on our long tradition of delivering a superlative music listening experience.

Specifications

General Specs

Depth (in.)14.57
Height (in.)4.13
Width (in.)17.32
Channels2
Analog Audio(RCA) Input6
Headset JackYes
Product Weight (lbs.)14.7700

Additional Features

HDAM VersionSA3, SA2

In/Outputs

Audio Inputs6
Audio Outputs2
Speaker TerminalTransparent, Screw type
Number of Terminals4

Additional Specifications

Power Output (8 / 4 Ohm RMS)40 W / 55 W
Frequency response10 Hz-50 kHz
Total Harmonic Distortion0.01 %
Damping Factor100
Input Sensitivity: MM2.2 mV / 47 kOhm
Signal to Noise Ratio: MM83 dB
Input Sensitivity: High level200 mV / 20 kOhm
Signal to Noise Ratio: High level103dB (2V input)

General

Power Consumption350W
Standby Consumption0.3 W
Remote ControlRC002PMCD
