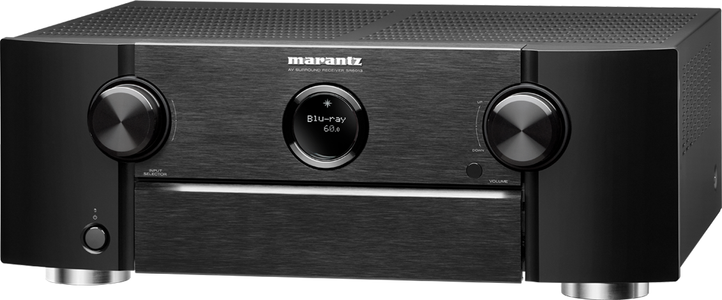

Marantz® Black 9.2 Channel 4K Ultra HD AV Receiver with HEOS

Product Overview

Immerse yourself in premium sound and multi-dimensional audio with the Marantz SR6013 9.2 channel AV receiver. It features Dolby Atmos, DTS:X and DTS Virtual:X decoding for immersive home theater, and proprietary HDAM circuit boards for more detailed, dynamic sound. Eight HDMI inputs are fully compatible with the latest specifications, including 4K Ultra High Definition video, 60Hz video, HDR, Dolby Vision and Hybrid Log-Gamma. Listen to all your favorite music from your smart devices via Bluetooth, AirPlay or the HEOS app. Control the SR6013 with your voice and Amazon Alexa — download the HEOS Home Entertainment skill and ask Alexa to play, pause or stop music, switch inputs for your different media players, turn up the volume and more.

Now available – Apple AirPlay 2

9.2 channel AV Receiver with 110 W per channel (8 Ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)

8 HDMI inputs (incl. 1 front) with full HDCP 2.2 support; 3 HDMI outputs

Analog to HDMI conversion and full rate 4K Upscaling

4K/60 Hz full-rate pass-through, Dolby Vision compatibility, HDR, HLG and BT.2020

Three-dimensional audio formats Dolby Atmos, DTS:X (up to 7.1.4 with an external 2ch amplifier) and DTS Virtual:X for height virtualization effects

eARC (Enhanced Audio Return channel) supports the transmission of 3D audio from your TV apps with a single HDMI connection

Stream music from Internet Radio, Spotify Connect, Pandora, SiriusXM, Amazon Music, TIDAL, Deezer and more with Bluetooth, Airplay2 or HEOS built-in

Built-in Wi-Fi with 2.4GHz/5GHz dual band support

Enjoy multi-room whole-home audio streaming with HEOS technology

Amazon Alexa voice control via the HEOS Home Entertainment skill

Marantz 2016 AVR remote app for control over the latest generation of Marantz network AV Receivers. Available on iOS and Android.

High Resolution DSD (2.8/5.6MHz), FLAC, ALAC and WAV support

AKM AK4458 32-bit D/A converters, HDAM circuit boards and Current Feedback circuitry for optimum fidelity and maximum dynamic range

Suite of Audyssey room correction software: Audyssey MultEQ XT32, Dynamic Volume and Dynamic EQ, LFC and Sub EQ HT

Seamless out-of-the-box experience with Quick Start Guide, guided Setup Assistant and Marantz AVR Remote app

Hybrid PLL Clock Jitter Reducer for pristine sound that’s immune to disruptions in the surrounding circuit environment

Powerful Nine-channel Discrete Amplifier

Featuring discrete high-current power amplifiers on all channels, the SR6013 delivers 110 watts of power per channel (8 Ohm, 20 Hz - 20 kHz, 0.08% 2ch drive). With low impedance driver capability, it offers operational stability with a wide range of speakers for balanced, quality sound. Auto Eco Mode adjusts power output to speakers based on volume level and on-screen eco meter, providing power consumption reduction in real-time without sacrificing superb Marantz sound.

Latest HDMI Connectivity

Includes eight HDMI inputs — with one HDMI input on the front panel for quick connection — each one supporting HDCP 2.2, 4K Ultra HD 60Hz video, 4:4:4 Pure Color sub-sampling, Dolby Vision, HLG, High Dynamic Range (HDR), 21:9 video, 3D and BT.2020 pass-through. The video processor is capable of upscaling SD and HD video to 4K Ultra HD. Three HDMI outputs allow you to connect to multiple zones and run a TV and projector at the same time.

Supports Latest Object-based Audio Formats

Immerse yourself in multi-dimensional audio with the latest surround formats, including Dolby Atmos, DTS:X and DTS Virtual:X. DTS Virtual:X provides immersive audio without height channels, creating virtual height effects in a 5.1, 7.1 or 2.1 speaker arrangement.

IMAX Enhanced

Get the most premium at-home entertainment experience with IMAX Enhanced—the latest technology program from IMAX that sets a new standard for image, sound, scale and content quality. Watch clearer pictures and brighter images. Feel immersive, heart-pounding audio delivered by DTS. See more picture on the largest screens. And experience premium content digitally remastered by IMAX.

Dolby Atmos

Feel every dimension in Dolby Atmos. Enjoy a 5.1 surround sound speaker system and two additional overhead speakers or two Dolby Atmos elevation speakers for the ultimate home theater experience — including Dolby Surround upmixer for legacy content.

DTS:X

DTS:X immersive audio formatting places sound where it would naturally occur in space, creating life-like, multi-dimensional audio. The included spatial remapping engine of DTS Neural:X™ offers improved immersion and heightened realism in all of your favorite movies.

DTS Virtual:X

DTS Virtual:X provides immersive audio without height channels, creating virtual height effects in a 5.1, 7.1 or 2.1 speaker arrangement.

Amazon Alexa Voice Control

Enjoy hands-free control with Amazon Alexa and your voice. Adjust the volume, skip to the next track, switch inputs for your different media players and more — “Just Ask.” Download the HEOS Home Entertainment Skill to enable Amazon Alexa voice commands for SR6013, HEOS devices and other select Marantz products.

HDMI eARC Object-based Audio Support

eARC (Enhanced Audio Return Channel) supports the transmission of 3D audio from your TV apps with a single HDMI connection for the simplest setup. The feature will be enabled via a future firmware update.

HEOS, Bluetooth, Wi-Fi and AirPlay Capability

Dual antenna system lets you stream the most popular music services via Bluetooth, AirPlay or the HEOS app. Listen to your playlists on Spotify, Pandora, TuneIn, Deezer and more.

HEOS Multi-room Streaming

Built-in HEOS technology lets you enjoy your favorite music in any room of your home for a wireless, whole-home audio experience. Play the same song in every room or select a different song for each connected room — the choice is yours. Enjoy music from Spotify, TuneIn, Sound Cloud, Tidal, Napster, Deezer or your local music file libraries. With additional HEOS components, like HEOS-capable speakers, play all your music in one room or many.

Support for Major Voice Control Agents

Enjoy effortless voice control and total flexibility from the leading voice agents. Speak commands with Amazon Alexa , Google Assistant, Apple Siri and high-end smart home automation, Josh.ai. Ask to play your favorite music, turn the volume up, skip to the next track, switch inputs and more. Switch between voice agents, or pick a favorite to use — the choice is yours. Functionality varies by voice agent.

Amazon Alexa Voice Control

Use your voice to stream your favorite music services to this HEOS-enabled device. Ask Alexa to play music from Pandora, Spotify, Amazon Music and much more. Switch between inputs (Blu-ray, DVD, Media Player, etc.), turn volume up or down, pause, mute and play the next song — all with your voice.

To start streaming with Alexa voice commands, open the Alexa app and select “Skills.” Add HEOS Home Entertainment to enable. Then, go to Smart Home in the Alexa app menu and choose Devices and Discover or say “Alexa, discover my devices.”

With HEOS Home Entertainment and Alexa, you can stream to this product and any other HEOS-enabled device.

Google Assistant Voice Control

Ask your Google Home, Google app or other devices with Google Assistant built-in to control content across your listening environment. Start music in the HEOS app, then ask your Google Assistant to control volume, play, pause, skip tracks and more. ‘Works with the Google Assistant’ feature is always improving — further enhancements arrive in 2019.

AirPlay 2 + Apple Siri Voice Control

Stream audio from your favorite music services like Apple Music and Spotify or watch videos from services like Youtube and Netflix from any iPhone, iPad, Mac or Apple TV and hear the audio perfectly synced to your speakers Airplay 2 sources.

Airplay 2 also supports multi-room audio – wirelessly stream content to multiple AirPlay 2 compatible devices simultaneously with improved audio buffering to ensure smooth audio playback. AirPlay 2 provides control and grouping of compatible audio devices within the Apple Music or Home app. Use Airplay 2 in-app or with your voice via Siri.

Josh.ai Smart Home Voice Automation

An elevated voice agent for the high-end smart home, Josh.ai offers flexible voice control for nearly any aspect of your day-to-day experience and entertainment environment. Use voice commands to control the thermostat, lights, home appliances, speakers, AVR and more. Josh.ai is installed by custom integrators and accessed through an app on your phone or tablet. Works with iOS and Android devices.

Marantz 2016 AVR Remote

The Marantz 2016 AVR Remote app provides unprecedented control over the latest generation of Marantz network AV Receivers. Control power, volume, input and settings, or switch to the HEOS app to access an incredible range of music content and streaming services. Download available for iOS and Android phones and tablets.

High-resolution Audio Support

Discover the incredible fidelity of high resolution audio tracks with the ability to decode up to 24-bit/192-kHz ALAC, FLAC and WAV lossless files as well as DSD 2.8MHz and 5.6MHz tracks (the audiophile format of SACD) via the front panel USB port and network sources. Or, listen to other popular file types such as MP3.

Advanced 32-bit D/A Conversion on All Channels

Easily connect your analog turntable to the receiver and enjoy the pure intent of each recording within your vinyl collection.

High Grade Audio Components; Marantz HDAM and Current Feedback Topology

The SR6013 features exclusive Marantz Hyper Dynamic Amplifier Module (HDAM) technology that provide ultra-fast slew rate, true wideband performance and maximum dynamic range for optimum sound quality. Current Feedback technology, first introduced by Marantz more than 60 years ago, replaces voltage feedback configuration that’s typical of AV receivers and delivers wide, closed-loop bandwidth and steep slew rate for superior fidelity with wideband audio sources.

Phono EQ Stage with HDAM

The HDAM component of the Marantz SR6013 outperforms op-amp solutions due to its high speed and maintains a clean audio signal for exceptional sound performance.

Advanced Audyssey MultEQ XT32

Equipped with the full Audyssey Platinum suite of advanced DSP algorithms, the SR6013 features Audyssey MultEQ XT32 automatic room acoustic correction. With the supplied measurement microphone, MultEQ XT32 analyzes each speaker's output (including the subwoofers) at up to 8 measurement locations and generates precision digital filters that optimize each channel for the correct frequency and time domain response. Audyssey Dynamic Volume smooths out disruptive jumps in volume (such as TV commercials), letting you listen at lower levels while still enjoying clear dialogue, music and sound. Audyssey Dynamic EQ provides full-range clarity at any listening level, and Audyssey Low Frequency Containment uses advanced psychoacoustic algorithms to deliver a full-range balance, including deep bass, without disturbing neighbors or people in other rooms of your home. Audyssey Sub EQ HT provides individual DSP tailoring of each subwoofer in a dual subwoofer setup for deeper bass with improved definition. Plus, the Audyssey MultEQ Editor app lets you view and adjust settings for detailed tuning and customize the sound more precisely to your room and tastes.

External Control Capabilities

The SR6013 features external control and IP control capabilities for easy customization and compatibility with third-party integration solutions. It offers IP control capability for major third-party control devices, as well as Control4 SDPP (Simple Device Detection Protocol) certification for seamless integration with Control4 home automation equipment. An IR (infrared) remote control is included on the rear panel for remote control compatibility with other components in your home theater system, and remote monitoring capability is now supported for troubleshooting.

Multi-source, Multi-room

Watch a movie in one room while another family member listens to a CD in a different zone without interruption. Enjoy 7.1-channel surround sound in the main room and a separate source or music stream in another. Connect a pair of stereo speakers to the multi-room amplified outputs or hook up a separate stereo amp and speakers to the Zone 2 pre-outs.

Dual Subwoofer Outputs

Supports dual subwoofers for even, low-frequency bass response within your listening environment. Enjoy accurate bass with no audible peaks or dips no matter where you place your subwoofer.

Smart TV Connectivity

Easily control the receiver with your Smart TV remote via the HDMI CEC functionality associated with your Smart TV. Simply set “HDMI Control” to ON in your receiver, then set “Smart Menu” to ON and begin controlling the SR6013 with your TV remote. The Smart Menu home screen gives you quick access to source and surround mode selections, the AVR's setup menu and four Smart Selects.

Simple Smart Select Functions

Four Smart Select function buttons on the included remote control store your preferred setup — including input, volume and Audyssey configuration — for particular sources. With the push of a button, the receiver perfectly configures for any source, from Blu-ray to TV set-top box, to your favorite Internet radio station and more.

Easy Setup Experience

The SR6013 Quick Start Guide provides simple, direct instructions to get started. Once you connect your TV to the SR6013 via HDMI, the Marantz Setup Assistant appears on your TV screen and guides you through setup. The Setup Assistant helps you establish crucial settings for the best possible sound quality, whatever your configuration.

More Than 60 Years of Audiophile Heritage

Founded in 1953, Marantz has a long and rich history of designing audio components embraced by music lovers and critical listeners around the world. Because Music Matters, the SR6013 carries on our long tradition of delivering a best-in-class listening experience for music and cinema.

More Support for Custom Integration

All Marantz 2018 AVRs offer extended support for easy integration into custom installs. To support this effort, Marantz 2018 AVRs support “ihiji Invision” remote system management technology, “Domotz Pro” remote monitoring and management technology as well as offer a web interface to control and setup your AVR from a computer on the same network. The two first programs allow you to monitor the status of connected products and troubleshoot remotely from a sperate location or on the go.
