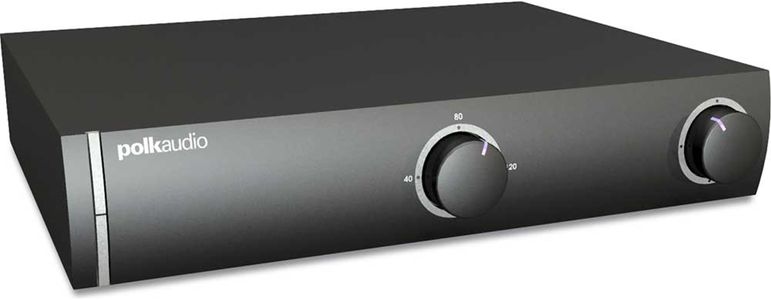

Polk Audio® CSW Series Subwoofer Amplifier

Model #: SWA500

At a Glance

The BASH amplifier combines the fidelity of conventional class A/B amplifiers with the efficiency of class D amplifiers. The bottom line is high power, and cool, reliable operation with precise definition and low distortion.

WarningProposition 65 Warning for California Residents
Polk Audio® CSW Series Subwoofer Amplifier

Overall

Total Pieces1

Accessories

Included Accessories(2) SPEX Cards - One for each of the Polk subwoofers this device supports

Shipping Cartons

Carton 117" (43.18 cm) h x 21.5" (54.61 cm) w x 21.5" (54.61 cm) d - 14 lbs (6.35 kg)

Power

US Voltage120 volts A/C

Warranty

Electronics Warranty3 years
Original Purchaser OnlyYes

Inputs

Audio InputsLFE (Unfiltered); Pair (L/R) Analog RCA
Speaker Inputs(2) Pair of Binding Posts - Gold Plated

Outputs

Audio OutputsPair (L/R) Analog RCA
Speaker Outputs(2) Pair of Binding Posts - Gold Plated

Connections

Coaxial Digital Audio Inputs1
Speaker ConnectorsPosts
Analog Audio(RCA) Output1

Internal Amplifier

Power500 watts
Power - One Channel Driven250 watts
Power - Two Channel Driven500 watts
Amplifier ClassHybrid Class D

Amplifier

Total Pieces1
OrientationHorizontal
Height3.5" (8.89 cm)
Width17" (43.18 cm)
Depth12.625" (32.07 cm)

General Specs

Depth (in.)12.63
Height (in.)3.5
Width (in.)17
MPNAW0515
Analog Audio(RCA) Input1
Watts per Channel (Watts)500
Color Finish NameBlack
Product Weight (lbs.)17
ColorBlack

Polk Audio® CSW Series Subwoofer Amplifier

Model #: SWA500
25068
Model #: SWA500
Polk Audio
$99,999.00

Call for Best Price

At a Glance

The BASH amplifier combines the fidelity of conventional class A/B amplifiers with the efficiency of class D amplifiers. The bottom line is high power, and cool, reliable operation with precise definition and low distortion.

Get to know this product.

Class D digital design delivers huge power and runs cool for superb long-term reliability

500 Watts into 4 Ohms at <0.01% THD

Powers up to two CSW subs of the same model

Front panel low pass filter and level adjustment knobs make "tweaking" a snap.

Plug in SPEX circuit cards (supplied) optimize the amplifier to match the specific subwoofer model being used

Custom frequency shaping (programmed into SPEX card) for the deepest, most accurate bass perfromance

Useful Documents
Specifications

General Specs

Depth (in.)12.63
Height (in.)3.5
Width (in.)17
MPNAW0515
Analog Audio(RCA) Input1
Watts per Channel (Watts)500
Color Finish NameBlack
Product Weight (lbs.)17
ColorBlack

Connections

Coaxial Digital Audio Inputs:1
Speaker Connectors:Posts
Analog Audio(RCA) Output:1

Overall

Total Pieces1

Accessories

Included Accessories(2) SPEX Cards - One for each of the Polk subwoofers this device supports

Warranty

Electronics Warranty3 years
Original Purchaser OnlyYes

Shipping Cartons

Carton 117" (43.18 cm) h x 21.5" (54.61 cm) w x 21.5" (54.61 cm) d - 14 lbs (6.35 kg)

Amplifier

Total Pieces1
OrientationHorizontal
Height3.5" (8.89 cm)
Width17" (43.18 cm)
Depth12.625" (32.07 cm)

Internal Amplifier

Power500 watts
Power - One Channel Driven250 watts
Power - Two Channel Driven500 watts
Amplifier ClassHybrid Class D

Inputs

Audio InputsLFE (Unfiltered); Pair (L/R) Analog RCA
Speaker Inputs(2) Pair of Binding Posts - Gold Plated

Outputs

Audio OutputsPair (L/R) Analog RCA
Speaker Outputs(2) Pair of Binding Posts - Gold Plated

Power

US Voltage120 volts A/C
