General Specs |
| Color Finish Name | White |
| Manufacturer Warranty | 5 Years Parts and Labor |
| Mounting Hardware Included | No |
| Shipping Depth (in.) | 8 |
| Shipping Width (in.) | 12.25 |
| Shipping Height (in.) | 12 |
| Color | White |
| Impedance | 8 |
| Number of Speakers | 1 |
| Sensitivity | 92 |
| Height (in.) | 9.38 |
| Width (in.) | 9.38 |
Connections |
| Connector Type: | Push-Type Speaker Terminals |
Construction |
| Tweeter Composition: | Silk Dome |
| Midrange Size: | 6.5 |
| Midrange Composition: | Fiber-Composite |
Other |
| Sold As: | Pair |
Styling |
| Color: | White |
Overall |
| Total Pieces | 1 |
Accessories |
| Included Accessories | (1) White Grille, Paintable |
| Optional Accessories | (1) PB LC80i - Pre-Construction Bracket - Sold Separate |
Warranty |
| Cabinet Warranty | 5 years |
| Drivers Warranty | 5 years |
| Original Purchaser Only | Yes |
Shipping Cartons |
| Carton 1 | 12" (30.48 cm) h x 12.25" (31.12 cm) w x 8" (20.32 cm) d - 5.5 lbs (2.49 kg) |

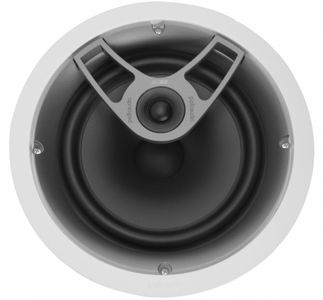

In Ceiling Loudspeaker |
| Quantity Included | 1 |
| Availability | US |
| Driver Complement | (1) 8" (20.32 cm) d (Round) Dynamic Balance driver polymer composite cone - Mid/Woofer; (1) 0.75" (1.91 cm) d (Round) Silk/polymer dome - Tweeter |
In-Ceiling Mount |
| Shape | Round |
| Dimensions | 9.375" (23.81 cm) diameter |
| Clearnace Required for Mounting Dogs (add to each side of cutout) | 3.687" (9.36 cm) |
Inputs |
| Speaker Inputs | (1) Pair of Heavy Duty, Spring Loaded - Plastic |
Audio Quality |
| Total Frequency Response | 35 Hz ? 20 Hz |
| Nominal Impedance | 8 ohms |
| Max Sensitivity (1 watt @ 1 meter) | 92 dB |
External Amplifier |
| Recommended Amplifier Power Per Channel | 20 watts ? 100 watts |
