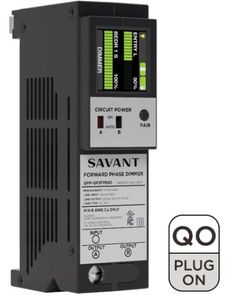

Product Overview
Control capability for dimming two loads up to 300 VA (volt-ampere)
Compatible with forward phase loads
Built-in Energy monitoring; +/- 3% accuracy / 1sec sample time
Color LCD display for easy load identification, load status and energy usage
Reset button / Manual load test switch
Communicates over Bluetooth Low Energy
Fits into 3/4 inch QO™ compatible breaker panels
Simple to configure and deploy using RacePoint Blueprint Lighting Manager or the Savant Power & Light app
On-boarding from an iOS device
Environmental
Temperature - 32° to 104° F (0° to 40° C)
Humidity - 5% to 85% Relative Humidity (non-condensing)
Standards
Wireless - Bluetooth Low Energy (BLE), 2.4 GHz radio frequency
Regulatory
Safety and Emissions - FCC Part 15, UL, ICES 003
Contains FCC ID: PUU-QP2FPD05
Contains IC: 10798A-QP2FPD05
RoHS - Compliant
Power
Input (powers module) - 120V AC (+/- 10%) @ 60 Hz, 0.1A max
Input (from external source) - 120V AC @ max load power
Load Power (Max) - 300VA 2.5A @120V AC max per channel (600VA 5A @120V AC max when only one channel used)
Features of Automatic Action - Type 1 action
Proposition 65 Warning for California Residents
