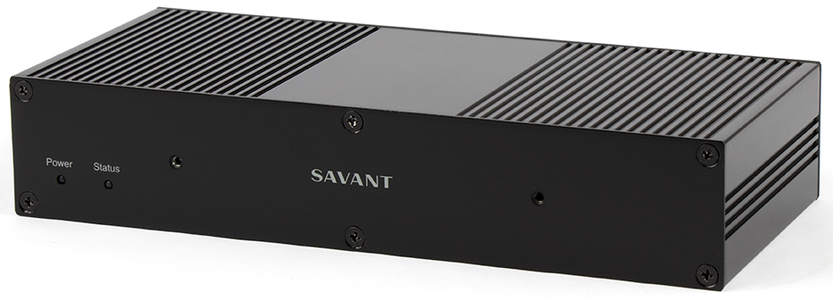

Savant® ProAV Black 16 Channel Audio Output IP Receiver

Product Overview

As the first home automation company to embrace mobile technology, we understood early that the customer experience could extend beyond the home and open new possibilities for control.

Over the years, our technology has evolved and our company has grown, but our goal remains the same. We've become the home automation brand of choice for the world's most luxurious homes, castles, and even yachts.

Savant's premium home automation systems offer personalization features that make the difference between a smart home and a Savant Home.

The Savant IP audio output uses an existing IP Network via AVB to distribute Audio, this product is a multi-channel audio output that can receive up to 8 streams of Audio from the AVB network and send them out any of the analog stereo out channels. This product supports mute, volume control, PEQ, mono and up to 160 ms of delay in 1 ms steps. There are also GPIO ports to trigger an external amplifier as well.

8 stereo pairs (16 channels) of audio output switching

Any stream from the AVB network can be routed to any channel

Includes audio Processing: Mute/Un-Mute, Volume Control, PEQ, Mono Summing, and Delay - 1 to 160 ms, 1 ms steps

Control Ports - 2 GPIO

Environmental

Temperature: 32° to 104° F (0° to 40° C)

Humidity: 10% to 80% (non-condensing)

Power

Input Power: 5V DC 3A

Maximum Power: 15W

Compliance

Safety & Emissions: FCC Part 15B | CE Mark | C-Tick

RoHS Compliant

Minimum Supported Requirements

Release: Savant OS: da Vinci 8.7

Basic warranty period is two (2) years excluding misuse defined as abuse, accidental damage, modifications, improper wiring, improper repair, incorrect repair, and operation outside specified operating temperatures and humidity.
