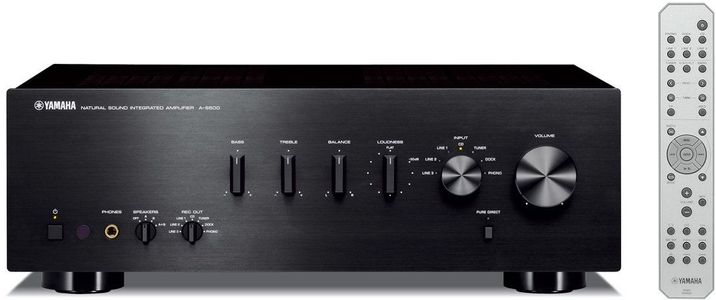

Yamaha® 2-Channel Integrated Amplifier

Model #: A-S500

$449.95

At a Glance

The A-S500 is designed for superb musical expression with high performance, outstanding power and sound quality combining ToP-ART technology and ART Base chassis construction with gold–plated speaker terminals and dual aluminum heat sinks and a center bar for crisp, clean sound. Advanced features include continuously variable loudness control, Pure Direct, along with Yamaha iPod® dock connection, for endless music enjoyment options.

WarningProposition 65 Warning for California Residents
Yamaha® 2-Channel Integrated Amplifier

Connections

Analog Audio(RCA) Output2

Features

Remote Control TypeWireless Remote

Other

Speaker A/B SwitchingYes

Misc. Specs

Depth (in.)15.25
Height (in.)6
Impedance2; 4; 6; 8 Ohms
Width (in.)17.18
Channels2
Analog Audio(RCA) Input5
Headset JackYes
Preamp Outputs1
Product Weight (lbs.)22.7

Specifications

Minimum RMS Output Power (8 ohms, 20 Hz - 20 kHz)85 W + 85 W (0.019% THD)
Maximum Power(8 ohms, 1 kHz, 10% THD)105 W + 105 W
High Dynamic Power/Channel (8/6/4/2 ohms)130 / 150 / 185 / 220 W
Input Sensitivity / Impedance (Phono)3 mV / 47 kilohm
Input Sensitivity / Impedance (CD)200 mV / 47 kilohm
Output Level / Rec Out200 mV / 1 kilohm
Frequency Response10 Hz-100 kHz ±1 dB
Total Harmonic Distortion (Phono, 20 Hz-20 kHz)0.025% Rec Out (3 V)
Total Harmonic Distortion (CD to Sp Out, 20 Hz - 20 kHz)0.015% (42.5 W / 8 ohms)
Signal-to-Noise Ratio (Phono)90 dB (5 mV, Input Shorted)
Signal-to-Noise Ratio (CD)100 dB (200 mV, Pure Direct, Input Shorted)
Residual Noise (IHF-Network)32 µV
Gain Tracking Error (0-99dB)0.5 dB or less
Audio In / Out6 / 2
Subwoofer OutYes
Pure DirectNo
Standby Power Consumption0.5 W
YID-W10 Connected Standby Power Consumption1.2 W
iPod Connected Standby Power Consumption35 W
Power Management (Auto Power Standby)Yes (6 hours)
Dimensions (W x H x D)17-1/8” x 6” x 15-1/4”
Weight22.7 lbs.

Yamaha® 2-Channel Integrated Amplifier

Model #: A-S500
Available in Store Only
$449.95

You Might Also Need

Protection Plans

3 Year Product Replacement Warranty under $500

$120.00

5 Year Product Replacement Warranty under $500

$179.00

At a Glance

The A-S500 is designed for superb musical expression with high performance, outstanding power and sound quality combining ToP-ART technology and ART Base chassis construction with gold–plated speaker terminals and dual aluminum heat sinks and a center bar for crisp, clean sound. Advanced features include continuously variable loudness control, Pure Direct, along with Yamaha iPod® dock connection, for endless music enjoyment options.

Get to know this product.

Main Features

Dual aluminum-extruded heat sinks ensure effective heat dissipation and help achieve crisp, clean sound

Gold-plated speaker terminals and RCA in/out jacks are durable and provide highest quality connections

Center bar reinforces the internal structure to further prevent vibration from affecting the sound quality

Pure Direct uses the shortest signal route for higher sound purity with low noise and transmission losses

Yamaha's exclusive continuously variable loudness control for listening at low volumes

Built-in iPod dock port has an independent power supply for extremely high S/N ratio

Advanced Features

85 W x 2 high power output

ToP-ART (Total Purity Audio Reproduction Technology)

Aluminum-extruded front panel

Subwoofer out

Speaker A, B or A+B selection

Record out selector

Power management (auto power down)

Slim-design remote control

Dimensions (W x H x D): 17-1/8" x 6" x 15-1/4"

Speaker A/B and A+B Selection

Enjoy music in a second room! Just connect a second pair of speakers to the Speaker B terminals and you can listen to either pair or both of them at the same time.

The Look and Texture of Quality

Offers the look and feel of the top-class A-S2000, with elegant aluminum front panel and silky touch volume/selector knobs. You can feel Yamaha's commitment to quality when you touch the knobs.

ToP-ART Sound Quality Design

ToP-ART (Total Purity Audio Reproduction Technology) design uses a symmetrical layout for accurate sound field reproduction and the ART Base to eliminate effects from external vibration.

Pure Direct

Music signals travel the shortest possible route, bypassing the buffer amp and tone, loudness and balance controls to virtually eliminate any signal degradation for the purest sound quality.

New Speaker Terminals

These high grade speaker terminals have gold plating for best connection and outstanding durability. The pitch between jacks is wider for easier insertion.

Highest Quality Parts

The quality of each individual part, as well as how they work together, basically determines the sound quality of any component. Yamaha uses only very high quality parts, carefully selected and tested.

Continuously Variable Loudness Control

Our ears lose sensitivity to high and low frequencies at low volume levels. This control lets you turn down the volume while maintaining the optimum frequency response.

Special Power Supply for Clear iPod Sound

The iPod dock has an independent power supply to prevent operating or charging current from the iPod from flowing into the amp ground signal. This ensures optimum iPod sound quality.

Balanced System for Minimal Noise

An unbalanced interface is subject to common mode voltage noise, so Yamaha uses a balanced system to receive the iPod signal. This makes a significant contribution to reducing noise in the system for higher sound quality.

New Remote Control

The A-S500 has a slim remote capable of controlling the optional T-S500 tuner

Useful Documents
Specifications

Connections

Analog Audio(RCA) Output:2

Features

Remote Control Type:Wireless Remote

Other

Speaker A/B Switching:Yes

Specifications

Minimum RMS Output Power (8 ohms, 20 Hz - 20 kHz)85 W + 85 W (0.019% THD)
Maximum Power(8 ohms, 1 kHz, 10% THD)105 W + 105 W
High Dynamic Power/Channel (8/6/4/2 ohms)130 / 150 / 185 / 220 W
Input Sensitivity / Impedance (Phono)3 mV / 47 kilohm
Input Sensitivity / Impedance (CD)200 mV / 47 kilohm
Output Level / Rec Out200 mV / 1 kilohm
Frequency Response10 Hz-100 kHz ±1 dB
Total Harmonic Distortion (Phono, 20 Hz-20 kHz)0.025% Rec Out (3 V)
Total Harmonic Distortion (CD to Sp Out, 20 Hz - 20 kHz)0.015% (42.5 W / 8 ohms)
Signal-to-Noise Ratio (Phono)90 dB (5 mV, Input Shorted)
Signal-to-Noise Ratio (CD)100 dB (200 mV, Pure Direct, Input Shorted)
Residual Noise (IHF-Network)32 µV
Gain Tracking Error (0-99dB)0.5 dB or less
Audio In / Out6 / 2
Subwoofer OutYes
Pure DirectNo
Standby Power Consumption0.5 W
YID-W10 Connected Standby Power Consumption1.2 W
iPod Connected Standby Power Consumption35 W
Power Management (Auto Power Standby)Yes (6 hours)
Dimensions (W x H x D)17-1/8” x 6” x 15-1/4”
Weight22.7 lbs.

Misc. Specs

Depth (in.)15.25
Height (in.)6
Impedance2; 4; 6; 8 Ohms
Width (in.)17.18
Channels2
Analog Audio(RCA) Input5
Headset JackYes
Preamp Outputs1
Product Weight (lbs.)22.7
