Product Dimensions 6"h x 17.12"w x 12.37"d

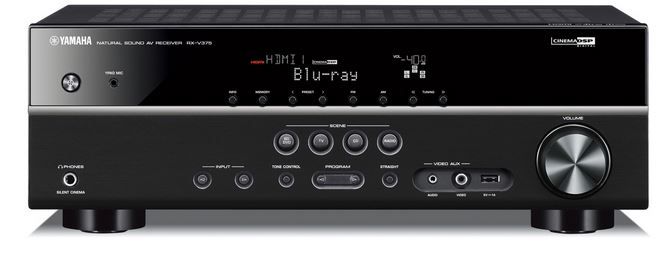

Designed for ease of use and full-scale AV entertainment with outstanding Yamaha sound quality from features such as Discrete Amp Circuit Design and many convenient functions including YPAO, SCENE and USB input for iPhone/iPod.Read More
5-channel powerful surround sound
100W per Channel (6 ohms, 1 kHz, 0.9 % THD, 1 ch driven)
70W per Channel (6 ohms, 20Hz-20kHz, 0.09 % THD, 2 ch driven)
135W per Channel (6 ohms, 1kHz, 10% THD, 1ch driven, JEITA)
Discrete amp configuration
4K pass-through for next generation super high resolution images
HDMI (4 in/1 out) with 3D and Audio Return Channel
Front panel USB Digital Connection for iPod and iPhone
YPAO sound optimization for automatic speaker setup
Multi language color OSD for improved visibility (English, German, French, Spanish, Russian, Italian, Japanese and Chinese)
ECO mode operation for about 20% less power consumption
General Specs | |
| Product Weight (lbs.) | 16.3 |
| Depth (in.) | 12.37 |
| Width (in.) | 17.12 |
| Height (in.) | 6 |
| Channels | 5 |
| Color Finish Name | Black |
Connections | |
| HDMI Inputs: | 4 |
| USB Port: | 1 |
| Composite Video Inputs: | 4 |
| Analog Audio(RCA) Input: | 4 |
| Coaxial Digital Audio Inputs: | 2 |
| HDMI Outputs: | 1 |
| Headset Jack: | Yes |
| Optical Digital(Fiber Optic) Audio Inputs: | 2 |
| Analog Audio(RCA) Output: | 2 |
Features | |
| Satellite Radio Ready: | Yes |
| Tuning Presets: | Yes |
| AM/FM Tuner Built-In: | Yes |
Specifications | |
| Power On Consumption (watts): | 100 |
| Digital Tuner: | Yes |
