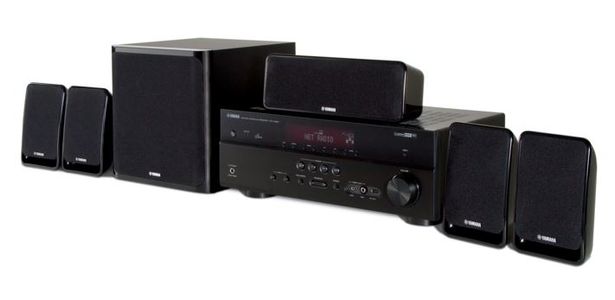

Yamaha 5.1 Home Theater System-Black

• The Total Purity Concept, which Yamaha has been cultivating for many years, encompasses high drive amp technology, high purity pre-amplification, anti-vibration technology and independent pure power supplies. All models have a fully discrete power amplifier that helps to minimize distortion. They also adopt independent pure power supplies, allowing dedicated power supplies for the analog and digital circuitry to prevent digital noise from affecting analog circuitry. The anti-vibration heatsinks are designed to suppress vibration from transistors and sound pressure. Independent power supplies for the DACs are designed to further eliminate noise on certain models. Down to every detail, these AV receivers are designed with full emphasis on the highest possible sound quality.

• This AV receiver is compatible with many audio formats such as Dolby® TrueHD and DTS-HD Master Audio™. They are also compatible with FLAC/WAV 192 kHz playback. You will enjoy excellent Blu-ray Disc™ sound quality and other types of high resolution sources.

• This AV receiver was designed with a strong focus on achieving exceptionally high sound clarity. It employs a discrete amp configuration and a low jitter PLL circuit, which contribute to its excellent audio performance.

• This AV receiver provides advanced HDMI® features including Ultra HD (4K) pass-through. Ultra HD (4K) refers to four times the resolution of a 1080p display. This receiver is capable of passing the Ultra HD (4K) data from the source to the display for image clarity far beyond present standards.

• 3D means the receiver can handle 3D signal data. The Audio Return Channel function enables data to be sent and received via the same HDMI cable so you can hear the sound from the TV via a single HDMI cable with no need for an extra optical cable.

• Pressing a SCENE button powers on the AV receiver and selects the input source and DSP mode. You can reset the buttons for different sources by selecting a source and DSP mode, then pressing a SCENE button for more than three seconds.

• Another benefit of HDMI is the availability of CEC functionality. When the unit is connected to a CEC compatible TV, it will turn on and off together with the TV and you can use the TV remote to control the volume. CEC also provides advanced functionality with other components. For example, you can use the receiver’s remote unit to control player functions like skip and stop.
• All connected devices must be HDMI CEC compatible. Some CEC compatible TVs/players may not work.

• This AV receiver provides a variety of network functions that enable you to access more sources and also enhance operation. You can connect the receiver to a PC to enjoy Internet radio and Pandora®. The AV Controller App (from iTunes® App Store or Google Play) lets you control various functions from your iPod®, iPhone®, iPad® or Android™ phones/tablets.

• This AV receiver supports AirPlay, which means they can accept wireless music streaming from iPod , iPhone or iPad, as well as from iTunes on a Mac® or PC. This makes it easy to enjoy music from your mobile devices or computer on your home theater system. You can use view metadata such as song title, artist name as well as album art* via the AV receiver's on-screen display.
• Some models don't support album art display.

• This AV receiver lets you use the Yamaha AV Controller App that is downloadable from the iTunes App Store or Google Play to control power on/off and volume, select input and DSP modes and operate other functions from an iPhone or Android device. You can also use in as many as 23* different languages and customize the interface by hiding unused icons and renaming functions. A tablet version is also available.

• MHL provides easy, direct connection of compatible mobile phones and this AV receiver. Playback of up to 1080p video and multichannel audio from the phone is supported. The receiver also charges the connected phone. Play, stop and other basic operations can be controlled from the remote control.

• A USB port on the front panel allows convenient connection of an iPod/iPhone/iPad, which also charges when connected. Because the digital signal from the iPod/iPhone/iPad is transmitted directly to the AV receiver, there is no signal loss or interference, so you enjoy the best possible sound quality. In addition, you can use the receiver’s remote control unit to operate the iPod/iPhone/iPad music playback functions.

• YPAO analyzes the room acoustics and adjusts various audio parameters for optimum sound in just a few minutes. It’s like having a professional installer calibrate your system.

• When the AV receiver is in HDMI Standby Through mode, the input source (Blu-ray Disc player, game console, etc.) for viewing on the monitor can be changed via the remote control. There’s no need to turn on the AV receiver in order to switch sources.

• CINEMA DSP 3D provides a wide, high and dense sound field. HD Audio format decoding lets you enjoy HD Audio sources. Virtual Presence Speaker delivers 3-dimensional sound without actual use of presence speakers.

• When music is encoded into a digitally compressed format like MP3, the frequency response suffers. Yamaha’s Compressed Music Enhancer employs sophisticated digital signal processing using exclusive algorithms to restore what was lost, so the music always sounds the way it should.

• Adaptive DRC automatically adjusts the dynamic range of the sound according to the volume level. This ensures that you hear clear dialogue and vocals and all sound effects at comfortable levels. There is no need to adjust the volume level as you listen; everything from whispers to big explosions will be heard clearly and comfortably at the same volume setting. It also tones down loud TV commercials and is ideal for low-volume, late-night listening when you do not want to disturb others.

• The Subwoofer Trim Control enhances the low frequencies by avoiding overlap with the front speaker output. This will result in a cleaner, more focused sound stage while providing a seamless frequency response. When subwoofer frequency overlap occurs in conventional systems, the overall sound is “pushed” toward the subwoofer. Subwoofer Trim Control takes care of this by separating the low subwoofer frequencies cleanly, thus stabilizing the front stage while providing a well-balanced enhanced bass sound.

• Yamaha’s new ECO mode reduces power consumption by about 20 percent. It can be set from the top of the GUI menu.
• Compared to power consumption when ECO mode is off (Yamaha measurement).

• Auto Power Down lets you save energy by selecting to turn off the power after two, four, eight or 12 hours.

• Yamaha makes its receivers eco-friendly with a low standby power consumption of 0.1 W in IR Standby Through mode (1 W in HDMI Standby Through mode, 2 W in Network Standby mode).

• This AV receiver provides a DC out connection for the YBA-11 Bluetooth wireless adapter (included accessory). You'll be able to stream music wirelessly from a Bluetooth wireless technology capable smartphone, tablet or PC, without a Wi-Fi environment.

• This AV receiver provides a DC out connection for the YWA-10 Wi-Fi adapter (optional accessory). This lets you stream music wirelessly via a router from network components such as a PC or NAS.

• 5-channel powerful surround sound
• 115 W per channel (8 ohms, 1 kHz, 0.9% THD, 1-ch driven)
• 80 W per channel (8 ohms, 20 Hz-20 kHz, 0.09% THD, 2-ch driven)
• Burr-Brown 192 kHz/24-bit DACs for all channels
• Direct mode for high quality sound reproduction
• Low jitter PLL circuitry helps optimize sound imaging

• Supports Deep Color (30/36-bit), x.v.Color, 24 Hz refresh rate and auto lip-sync compensation

• Charging of iPod, iPhone and iPad via USB when AV receiver is off
• iPod/iPhone song titles displayed in English and Western European languages on the front panel
• Multilingual color OSD for improved visibility
• Audio input assign capability for HDMI and component video input
• Audio delay for adjusting lip-sync (0-250 ms)
• 40-station preset tuning / Auto preset tuning
• Preset remote unit
• Background video feature (for radio only)

• SILENT CINEMA™ and Virtual CINEMA DSP

Specifications
