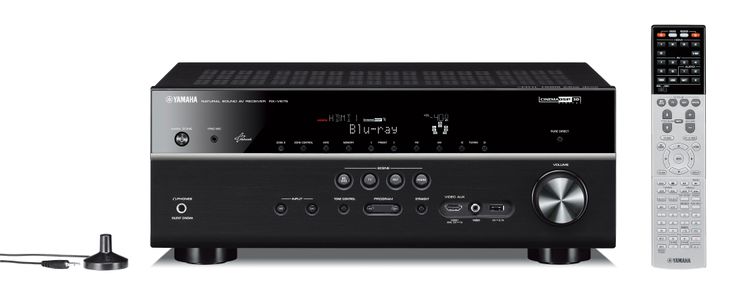

The RX-V675 7.2 channel network AV receiver is poised for maximum audio performance. Additional convenient functions include MHL® (Mobile High-Definition Link), AirPlay® and music streaming services, all controllable through Yamaha’s free AV Controller App. Front panel connection and charging for your iPod®/iPhone®/iPad® is provided, and Wi-Fi or Bluetooth® capabilities.
Ipod Ready | Yes |
---|---|
DLNA Certified | Audio Only |
Digital Tuner | No |
---|---|
Watts per Channel | 90 |
Product Weight (lbs.) | 22.1 |
---|---|
Depth (in.) | 14.38 |
Width (in.) | 17.13 |
Height (in.) | 6.38 |
Channels | 7.2 |
Manufacturer Warranty | 2 Year Parts & Labor |
Wifi Connectivity | No |
Wifi Capable | No |
Internet Connectable | No |
---|---|
HD Radio Ready | Yes |
Multiroom Capability | Yes |
On Screen Display | Yes |
Satellite Radio Ready | Yes |
Tuning Presets | Yes |
Video Up Conversion | Yes |
3D Ready | Yes |
Airplay | Yes |
HDMI Inputs | 6 |
---|---|
Ethernet Port | Yes |
USB Port | Yes |
Component Video Inputs | 2 |
Composite Video Inputs | 5 |
Analog Audio(RCA) Input | 4 |
Coaxial Digital Audio Inputs | 2 |
Component Video Outputs | 1 |
Composite Video Outputs | 1 |
HDMI Outputs | 1 |
Optical Digital(Fiber Optic) Audio Inputs | 2 |
Preamp Outputs | 1 |
Analog Audio(RCA) Output | 1 |
MHL® (Mobile High-Definition Link)
AirPlay® and music streaming services
Yamaha’s free AV Controller App
This AV receiver is compatible with many audio formats such as Dolby® TrueHD and DTS-HD Master Audio™. They are also compatible with FLAC/WAV 192 kHz playback. You will enjoy excellent Blu-ray Disc™ sound quality and other types of high resolution sources.
This AV receiver was designed with a strong focus on achieving exceptionally high sound clarity. It employs a discrete amp configuration and a low jitter PLL circuit, which contribute to its excellent audio performance.
This AV receiver provides advanced HDMI features including 4K pass-through. 4K refers to four times the resolution of a 1080p display. While not yet available, 4K displays and sources are sure to become popular in the future. This receiver is capable of passing the 4K data from the source to the display for image clarity far beyond present standards.
3D means the receiver can handle 3D signal data. The Audio Return Channel function enables data to be sent and received via the same HDMI cable so you can hear the sound from the TV via a single HDMI cable with no need for an extra optical cable.
Pressing a SCENE button powers on the AV receiver and selects the input source and DSP mode. You can reset the buttons for different sources by selecting a source and DSP mode, then pressing a SCENE button for more than three seconds.
Another benefit of HDMI is the availability of CEC functionality. When the unit is connected to a CEC compatible TV, it will turn on and off together with the TV and you can use the TV remote to control the volume. CEC also provides advanced functionality with other components. For example, you can use the receiver’s remote unit to control player functions like skip and stop.
This AV receiver provides a variety of network functions that enable you to access more sources and also enhance operation. You can connect the receiver to a PC to enjoy Internet radio and Pandora®. The AV Controller App (from iTunes App Store or Google Play) lets you control various functions from your iPod®, iPhone®, iPad® or Android™ devices.
A USB port on the front panel allows convenient connection of an iPod/iPhone/iPad, which also charges when connected. Because the digital signal from the iPod/iPhone/iPad is transmitted directly to the AV receiver, there is no signal loss or interference, so you enjoy the best possible sound quality. In addition, you can use the receiver’s remote control unit to operate the iPod/iPhone/iPad music playback functions.
YPAO analyzes the room acoustics and adjusts various audio parameters for optimum sound in just a few minutes. It’s like having a professional installer calibrate your system.
When the AV receiver is in HDMI Standby Through mode, the input source (Blu-ray Disc player, game console, etc.) for viewing on the monitor can be changed via the remote control. There’s no need to turn on the AV receiver in order to switch sources.
Ipod Ready: | Yes |
DLNA Certified: | Audio Only |
HDMI Inputs: | 6 |
Ethernet Port: | Yes |
USB Port: | Yes |
Component Video Inputs: | 2 |
Composite Video Inputs: | 5 |
Analog Audio(RCA) Input: | 4 |
Coaxial Digital Audio Inputs: | 2 |
Component Video Outputs: | 1 |
Composite Video Outputs: | 1 |
HDMI Outputs: | 1 |
Optical Digital(Fiber Optic) Audio Inputs: | 2 |
Preamp Outputs: | 1 |
Analog Audio(RCA) Output: | 1 |
Internet Connectable: | No |
HD Radio Ready: | Yes |
Multiroom Capability: | Yes |
On Screen Display: | Yes |
Satellite Radio Ready: | Yes |
Tuning Presets: | Yes |
Video Up Conversion: | Yes |
3D Ready: | Yes |
Airplay: | Yes |
Digital Tuner: | No |
Watts per Channel: | 90 |
Product Weight (lbs.) | 22.1 |
Depth (in.) | 14.38 |
Width (in.) | 17.13 |
Height (in.) | 6.38 |
Channels | 7.2 |
Manufacturer Warranty | 2 Year Parts & Labor |
Wifi Connectivity | No |
Wifi Capable | No |
