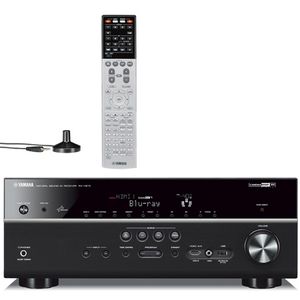

Versatile speaker options include 7.2ch surround, front presence, Bi-Amp main speakers or independent Zone 2 operation. Yamaha AV Controller App provides simple network control in either Zone. Use advanced YPAO (RSC) auto calibration and sophisticated Graphic User Interface to expedite setup and ensure accuracy.
Ipod Ready | Yes |
---|---|
DLNA Certified | Audio Only |
Digital Tuner | No |
---|---|
Watts per Channel | 90 |
Internet Connectable | No |
---|---|
HD Radio Ready | Yes |
Multiroom Capability | Yes |
On Screen Display | Yes |
Tuning Presets | Yes |
3D Ready | Yes |
Product Weight (lbs.) | 22.5 |
---|---|
Depth (in.) | 14.62 |
Width (in.) | 17.12 |
Height (in.) | 6.75 |
Channels | 7.2 |
Manufacturer Warranty | 2 Year Parts & Labor |
Wifi Connectivity | No |
Wifi Capable | No |
HDMI Inputs | 6 |
---|---|
Ethernet Port | Yes |
Component Video Inputs | 2 |
Composite Video Inputs | 5 |
Coaxial Digital Audio Inputs | 2 |
Component Video Outputs | 1 |
Composite Video Outputs | 1 |
HDMI Outputs | 1 |
Preamp Outputs | 4 |
7-channel powerful surround sound: 90W per Channel (8 ohms, 20 Hz-20 kHz, 0.09 % THD, 2 ch driven); 105W per Channel (8 ohms, 1 kHz, 0.9 % THD, 2 ch driven)
HD Audio format decoding: Dolby TrueHD and DTS-HD Master Audio; Dolby Digital Plus and DTS-HD High Resolution Audio
Discrete amp configuration
Pure Direct for pure HiFi sound quality enjoyment
Burr-Brown 192 kHz/24-bit DACs for all channels
Low-jitter PLL circuitry helps optimize sound imaging
Assignable amplifiers for bi-amp connection
4K / full HD 1080p video upscaling from analog and HDMI input
Supports Deep Color (30/36 bit), x.v.Color, 24 Hz Refresh Rate and Auto Lip-Sync compensation
Charging of iPod, iPhone and iPad via USB when AV Receiver is off
iPod/iPhone song titles displayed in English and Western European languages on the front panel and on-screen display
Audio input assign capability for HDMI and component video input
Audio Delay for adjusting Lip-Sync (0-500 ms)
Newly designed preset remote unit
Background Video feature (for tuner and Net)
Virtual dialogue lift even without use of presence speakers
Virtual Presence Speaker function for CINEMA DSP 3D surround without Front Presence Speakers
SILENT CINEMA and Virtual CINEMA DSP
Ipod Ready: | Yes |
DLNA Certified: | Audio Only |
HDMI Inputs: | 6 |
Ethernet Port: | Yes |
Component Video Inputs: | 2 |
Composite Video Inputs: | 5 |
Coaxial Digital Audio Inputs: | 2 |
Component Video Outputs: | 1 |
Composite Video Outputs: | 1 |
HDMI Outputs: | 1 |
Preamp Outputs: | 4 |
Internet Connectable: | No |
HD Radio Ready: | Yes |
Multiroom Capability: | Yes |
On Screen Display: | Yes |
Tuning Presets: | Yes |
3D Ready: | Yes |
Digital Tuner: | No |
Watts per Channel: | 90 |
Product Weight (lbs.) | 22.5 |
Depth (in.) | 14.62 |
Width (in.) | 17.12 |
Height (in.) | 6.75 |
Channels | 7.2 |
Manufacturer Warranty | 2 Year Parts & Labor |
Wifi Connectivity | No |
Wifi Capable | No |
