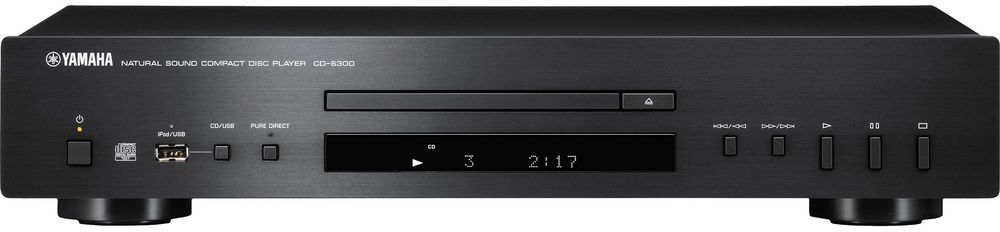

Yamaha® Black CD Player

Model #: CD-S300

$299.95

At a Glance

The CD-S300 compact disc player from Yamaha offers high sound quality and easy operation. Along with special Yamaha features such as Pure Direct, Intelligent Digital Servo and iPod and USB compatibility, the CD-S300 is also MP3/WMA compatible.

WarningProposition 65 Warning for California Residents
Yamaha® Black CD Player

Other

File FormatsCD, CD-R/RW (MP3, WMA), USB, iPod

Specifications

Power On Consumption (watts)13
Signal to Noise Ratio105 dB

Connections

USB Port1
Coaxial Digital Audio Outputs1
Optical Digital(Fiber Optic) Audio Outputs1

General Specs

Product Weight (lbs.)7.72
Width (in.)17.13
Depth (in.)10.25
Height (in.)3.38
Frequency Response2 Hz - 20 kHz
Disc Capacity1
Analog Audio(RCA) Output1

Yamaha® Black CD Player

Model #: CD-S300
16373
Model #: CD-S300
Yamaha
$299.95

Available in Store Only

$299.95

At a Glance

The CD-S300 compact disc player from Yamaha offers high sound quality and easy operation. Along with special Yamaha features such as Pure Direct, Intelligent Digital Servo and iPod and USB compatibility, the CD-S300 is also MP3/WMA compatible.

People also viewed:

Get to know this product.

10-key direct track and direct access

Random play

Repeat play (full/single)

3 mode time display

4 illumination levels

Last track resume

Auto ready mode

Play mode memory

Designed to Deliver Enjoyable Sound Quality

Inheriting many of the sound quality features of the S2000/S1000 Series components, the CD-S300 CD player delivers sound that will satisfy devoted music fans. In addition to CDs, it also provides high quality play of music files stored on digital audio players like iPod or USB memory devices via a USB port on the front panel.

Pure Direct

The CD-S300 offers Pure Direct, which is the same popular feature included in Yamaha amplifiers and receivers. By pressing the button on the front panel or on the remote control, it shuts down the digital audio output and turns off the display. This achieves the lowest possible noise interference and, therefore, the highest sound quality of the analog audio output.

Extremely Sophisticated Circuitry and Layout

Yamaha technicians devoted a great deal of time and effort to designing the overall interior layout of parts and circuit boards, a factor that significantly affects sound quality. As a result, the power supplies for the motor drive, display and USB sections, as well as the digital, and analog sections are individually isolated, eliminating electromagnetic interference among them. To achieve ideal weight balance for stable performance, the drive mechanism is located in the center of the unit.

Short Signal Paths

The highly logical and symmetrical internal layout of parts and circuit boards are designed to keep the signal paths on each board as short as possible. This purposeful design also keeps the paths between sections straight and short, minimizing the chance of signal loss or interference, something not easy to achieve.

Well Matched, High Quality Parts

Each of the individual elements in a CD player influences the sound quality, Which is why Yamaha puts a great deal of effort into the selection and matching of parts and materials. A high-grade acoustic capacitor, a new low noise, high-gain bandwidth op amp and the use of damping material under the transformer and around the signal cables are just a few examples of Yamaha’s commitment to great sound quality. In short, the CD-S300’s internal sophistication is on a level generally found on much more expensive models.

High Performance D/A Converter

Utilizing a Burr Brown 192kHz/24-bit DAC, the high performance D/A conversion system takes full advantage of the digital technology refined by Yamaha over a period of many years, ensuring excellent conversion precision, S/N ratio and dynamic range.

Laser Pickup Floating Mechanism

The laser pickup is isolated on a floating mechanism so its delicate operation cannot be affected by vibration.

Intelligent Digital Servo

Conventional tracking servo circuitry cannot completely overcome errors caused by a warped disc, dust and other defects. This system uses a dependable DSP (Digital Signal Processor), exclusive for CDs, to monitor the signal, adjusting pickup tracking and focus, as well as spindle motor speed, to compensate for any problems.

Enjoy Your MP3 and WMA Music

The USB port on the front panel gives you an easy way to enjoy high quality sound from MP3 or WMA digital music files stored on USB players and memory devices, as well as on memory cards mounted on USB card readers. You can also play files recorded on CD-R/RW discs.

Enjoy iPod Music at Maximum Quality

Using a USB cable, you can plug your iPod into the USB port to enjoy your music library via your audio system. The digital signal is sent to the CD player with no degradation. It is then converted to analog by the high performance DAC and transmitted to the amplifier by the high quality audio circuitry, allowing you to hear your music at the highest possible quality level. As iPod or USB audio data input from the USB port can also be output by digital-out terminals (optical or coaxial), digital signals can be transmitted “as is” to amps or audio systems with digital inputs.* You can use the remote control to command the play, pause, skip and forward/ backward functions, and the song, artist and album names will displayed. Compatible iPods are the iPod classic (including 120GB classic), iPod nano (2nd Gen., 3rd Gen., 4th Gen.) and iPod touch (1st Gen. and 2nd Gen.). When the power is on and USB mode is selected, the iPod charges automatically.

3-Mode CD Text Display

Information about the currently playing CD is shown right on the CD player’s display. The 3-mode CD Text display shows the CD’s title, the artist’s name and the title of the track.

Programmable Play

It’s extremely easy to program the tracks you want to hear in any order. You can clear the program at any time with a single touch.

Useful Documents
Specifications

General Specs

Product Weight (lbs.)7.72
Width (in.)17.13
Depth (in.)10.25
Height (in.)3.38
Frequency Response2 Hz - 20 kHz
Disc Capacity1
Analog Audio(RCA) Output1

Connections

USB Port:1
Coaxial Digital Audio Outputs:1
Optical Digital(Fiber Optic) Audio Outputs:1

Other

File Formats:CD, CD-R/RW (MP3, WMA), USB, iPod

Specifications

Power On Consumption (watts):13
Signal to Noise Ratio:105 dB
