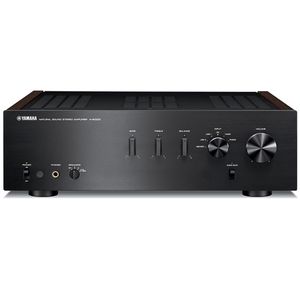

Yamaha Integrated Amplifier

Product Overview

Overview

High Performance Amplifier that Brings Out the Best of Other Components

Floating Balanced Power Amplifier

Triple Parallel Electronic Volume and Tone Controls

Fully Discrete Phono Equalizer and MC Head Amp

Symmetrical Construction

Specially Designed Feet

Minimum RMS Output Power

(8 ohms, 20 Hz-20 kHz, 0.02% THD) 90 W + 90 W

(4 ohms, 20 Hz-20 kHz, 0.02% THD) 140 W + 140 W

Maximum Power

(8 ohms, 1 kHz, 10% THD) 115 W + 115 W

(4 ohms, 1 kHz, 10% THD) 190 W + 190 W

Dynamic Power/Channel

(8/6/4/2 ohms) 105 W /135 W /190 W /220 W

Damping Factor

(8 ohms, 20 Hz-20 kHz) 160

Input Sensitivity/Impedance

CD, etc. 150 mV/47 k-ohms

Phono MM 2.5 mV/47 k-ohms

Phono MC 100 V/50 ohms

Main In 1 V/47 k-ohms

Frequency Response

CD, etc. to Speaker Out, Flat Position 5 Hz-100 kHz +0 dB/-3 dB

CD, etc. to Speaker Out, Flat Position 20 Hz-20 kHz,+0 dB/-0.3 dB

RIAA Equalization Deviation

Phono MM 20 Hz-20 kHz, ±0.5 dB

Phono MC 20 Hz-20 kHz, ±0.5 dB

Total Harmonic Distortion (20 Hz-20 kHz)

CD, etc. to Speaker Out 0.015% (90 W/8 ohms)

Phono MM to Rec Out 0.005% (2 V)

Phono MC to Rec Out 0.05% (2 V)

Signal-To-Noise Ratio [IHF-A Network]

CD, etc. (S: 150 mV, Input Shorted) 98 dB

Phono MM (S: 5 mV, Input Shorted) 93 dB

Phono MC (S: 500 V, Input Shorted) 85 dB

Residual Noise

(CD, etc., IHF-A-Network)

Channel Separation (1 kHz/10 kHz)

CD, etc., Input 5.1 k-ohms Terminaled 74 dB/54 dB

Phono MM, Input Shorted, Vol: -30dB 90 dB/77 dB

Phono MC, Input Shorted, Vol: -30dB 66 dB/65 dB

Tone Control Characteristics

Bass Boost/Cut (at 50 Hz) ±9 dB

Bass Turnover Frequency 350 Hz

Treble Boost/Cut (at 20 Hz) ±9 dB

Treble Turnover Frequency 3.5 kHz

Audio Muting

-20 dB (approx.)
